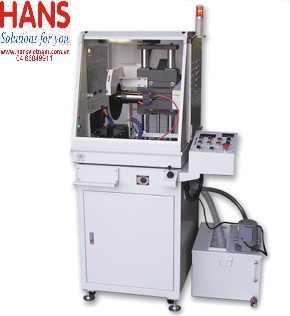

Máy cắt mẫu Toptech ALTOCUT CF330-120A

Model NO.

CF330-120A

Work Piece

Dimension

Max Ø120mm

20t x 120L

Cut-off wheel

Max Ø406 x Ø 32

Cutting Method

Auto return to the origin after cutting finished

Feeding and retreat speeds are adjustable

Feeding

Method

Auto

Button control; return to the origin after auto cutting is finished

Manual

Button control

Rotational Speed Of Cutting Main Shaft

2500rpm / 2100rpm (60/50HZ)

Cutting stroke

330mm

Cutting Clamps

Dual cutting clamp, Max opening: 150mm

Cutting Power

10HP-3 Ø

Cooling Device

1/4HP-3 Ø (auto recycle cooling)

Water Tank capacity

25gal

Machine Size

5500 x 1100 x1900 (H)mm

Machine type

Floor top

Power supply

AC22V-3Φ(380V，415V，440V)

Standard accessories

Tool: 1 set, Cutting wheels: 2pcs, Cooling oils: 4 liters

Main Shaft Feed Cutting

Main shaft oil hydraulic feed cutting

Optional

Function

CF001

Cutting Load Protection Function

1. If the cutting is overloaded, the machine will stop feeding for 2.5 seconds and then automatically restart the feeding. If the cutting is overloaded continually for three times, the automatic retracting warning light will flash.

2. If the electric current is overloaded, the machine will stop automatically.

3. Main motor’s maximum current load can be set up and current load’s status can be displayed when the main motor is cutting.

Optional

Function

CF002

Feeding And Collection System

“Maximum feeding length: 3000mm

Maximum collection length: 1500mm roller type feeding rack”

Feeding Length

“Display precision: 0.10mm

Maximum positioning length 1500mm Display: LCD display”
