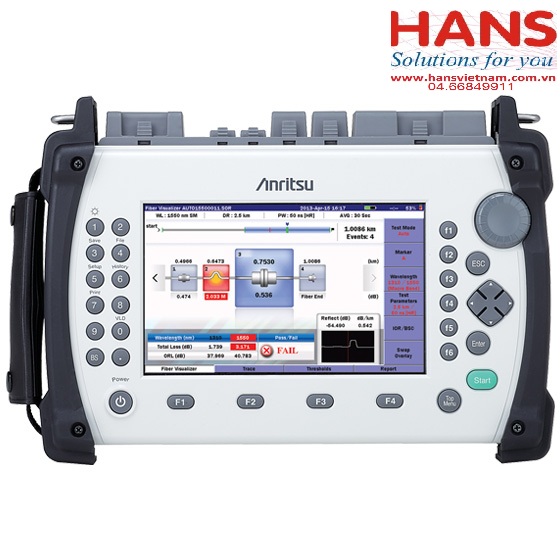

Máy đo quang OTDR Anritsu MT9083A2 (300 km)

Phạm vi khoảng cách

Chế độ đơn: 0.5, 1, 2.5, 5, 10, 25, 50, 100, 200, 300 km

Chế độ nhiều kênh: 0.5, 1, 2.5, 5, 10, 25, 50, 100 km

Vertical Scale

0.13, 0.33, 0.65, 1.3, 3.25, 6.5, 13 dB/div

IOR Setting

1.400000 to 1.699999 (0.000001 steps)

Đơn vị

km, m, kft, ft, mi

Lựa chọn ngôn ngữ

English, Simplified Chinese, Traditional Chinese, French, German, Italian, Korean, Portuguese, Russian,

Spanish and Swedish

Số điểm lấy mẫu

Normal: 5001, High density: 20001 or 25001, Very high density: 100,001 or 150,001

Độ phân giải

5 cm (min.)

hệ số phản xạ chính xác

Single mode: ±2 dB, multimode: ±4 dB

Độ chính xác khoảng cách

±1 m ±3 × measurement distance × 10–5 ± marker resolution (excluding IOR uncertainty)

Các chế độ kiểm tra

Fiber Visualizer: Provides end/break location, end to end loss, fiber length, easy graphical summary, PDF report, PDF viewer

Standard OTDR: User selectable automatic or manual set-up

Construction OTDR: Automated, multi-wavelength testing

Light source: Stabilized Light source (CW, 270 Hz, 1 kHz, 2 kHz output)

Loss test set (optional): Power meter and Light source

Connector Video Inspection Probe

Visual fault locator (optional): Visible red light for fiber identification and troubleshooting

Hiển thị

7-inch TFT-LCD (800 × 480, with LED backlight), Indoor/Outdoor type

Giao tiếp

USB 1.1, Type A × 1 (memory), Type B × 1 (USB mass storage)

Bộ nhớ

Internal memory: 440 MB (up to 1000 traces),

External memory (USB): up to 30,000 traces with 512 MB
