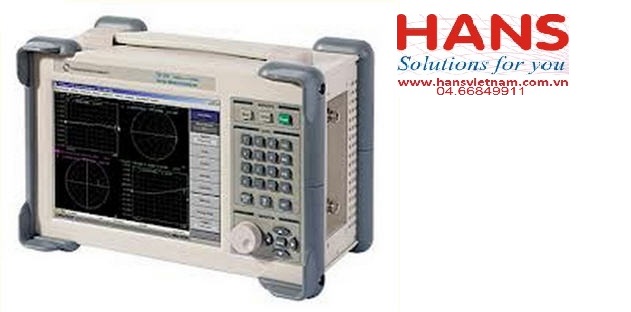

Máy phân tích mạng vector cầm tay TENMARS T5231A (300 kHz - 3.0 GHz)

0₫

Nhà Sản Xuất Transcom- Trung Quốc
Mã Sản Phẩm T5231A

Mô tả
Bình luận

Máy phân tích mạng vector cầm tay TENMARS T5231A (300 kHz - 3.0 GHz)

Hãng sản suất: TENMARS– Đài Loan

Model: T5231A

sử dụng rộng rãi để đo lường thiết bị lò vi sóng trong truyền thông không dây, truyền hình, thiết bị truyền hình, thiết bị radar và bán dẫn.

Thông số kỹ thuật:

Phép đo	Dải đo
Impedance	50Ω or 75Ω
Test port connector	N-type, female
Number of test ports	2
Frequency range	300kHz to 3GHz
Full CW frequency accuracy	±5×10^-6
Frequency resolution	1Hz
Number of measurement points	2 to 10001
Measurement bandwidths	1Hz to 30kHz (with 1/1.5/2/3/5/7 steps)
Dynamic range (IF bandwidth 10 Hz)	125dB, typ.130dB
Tốc độ đo
Measurement time per point		125μs
Source to receiver port switchover time		＜10ms
Number of points (IFBW 30kHz)		51	201	401	1601
Uncorrected (Start 300 kHz, stop 10 MHz)		13ms	52ms	104ms	413ms
Full two-port calibration (Start 300 kHz, stop 10 MHz)		46ms	123ms	226ms	844ms

Tùy chọn thêm:

1- 5301N50 High Precision, DC to 3GHz, 50Ω, N-type Calibration Kit Set

5301N50-30101 High Precision, SOL(N-f), 50Ω, DC to 3GHz.,

5301N50-30102 High Precision, SOL(N-m), 50Ω, DC to 3GHz

5301N50-30103 High Precision, THROUGH N(f) - N(f), 50Ω, DC to 3GHz

5301N50-30104 High Precision, THROUGH N(m) - N(m), 50Ω, DC to 3GHz

2- 5901N50 High Precision, DC to 9GHz, 50Ω, N-type Calibration Kit Set

5901N50-90001 High Precision, SHORT N(f), 50Ω, DC - 9GHz

5901N50-90003 High Precision, OPEN N(f), 50Ω, DC - 9GHz.

5901N50-90005 High Precision, LOAD N(f), 50Ω, DC - 9GHz

3- 5901N50-90007 High Precision, THROUGH N(f) - N(f), 50Ω, DC - 9GHz

5901N50-90002 High Precision, SHORT N(m), 50Ω, DC - 9GHz

5901N50-90004 High Precision, OPEN N(m), 50Ω, DC - 9GHz.

5901N50-90006 High Precision, LOAD N(m), 50Ω, DC - 9GHz

5901N50-90008 High Precision, THROUGH N(m) - N(m), 50Ω, DC - 9GHz

4- 5902S50 High Precision, DC to 9GHz, 50Ω, SMA Calibration Kit 5,050

5902S50-90201 High Precision, SOL(SMA-f), 50Ω, DC to 9GHz

5902S50-90202 High Precision, SOL(SMA-m), 50Ω, DC to 9GHz

5902S50-90203 High Precision, THROUGH SMA(f) - SMA(f), 50Ω, DC to 9GHz

5902S50-90204 High Precision, THROUGH SMA(m) - SMA(m), 50Ω, DC to 9GHz.

5- T5_RFCAB-NmNm_18101 Test Cable - DC to 18GHz, 50Ω, N(m)-N(m) , 1m

6- T5_RFCAB-NmSMAm_18102 Test Cable - DC to 18GHz, 50Ω, N(m)-SMA(m), 1m

7- T5_RFCAB-NmNm_60101 Test Cable - DC to 6GHz, 50Ω, N(m)-N(m), VSWR<1.1, IL<1.2dB.

8- T5_RFCAB-NmSMAm_60102 Test Cable - DC to 6GHz, 50Ω, N(m)-SMA(m), VSWR<1.1, IL<1.2dB

9- VNA_ATE Automated test software for VNA

10- T5_RM VNA rack mount kit

11- T5_FH VNA front handle kit,.

Tags:máy phân tích mạng vector, máy phân tích mạng viễn thông, VECTOR REFLECTOMETER
