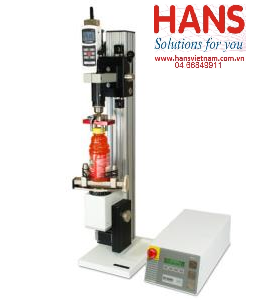

Advanced motorized torque test stands Mark 10 TSTM-DC

Advanced motorized torque test stands Mark 10 TSTM-DC

Model: TSTM-DC

Hãng sản xuất: Mark 10

Thông số kỹ thuật:

Maximum load:

Standard: 100 lbFin (11.5 Nm)

Optional: 200 lbFin (22.0 Nm)

Speed range:

Standard: 0.01 - 15 RPM (0.05 - 90°/s)

Optional: 0.04 - 60 RPM (0.2 - 360°/s)*

Speed accuracy: ±0.2% of setting, ±0% variation with load

Digital display of angle

Programmable angle limitsRotational travel accuracy: ±0.7° / 0.02 rev.

Rotational travel repeatability: 0.1° / 0.01 rev.

Rotational travel resolution: 0.1° / 0.01 rev.

Throat: 4.10" (104 mm)

Manual adjustment: 12° / adjustment knob rev

Angle dial with 2° resolution

Maximum slider travel: 15.5" (394 mm)

Slider travel rate: 1.047" (26.6 mm) / lever rev

Universal power supply: 80-250 VAC

CE mark

Maximum torque decreases proportionately with speed. Examples:
Maximum torque at 60 RPM = 25 lbFin (2.8 Nm)
Maximum torque at 30 RPM = 50 lbFin (5.6 Nm)
