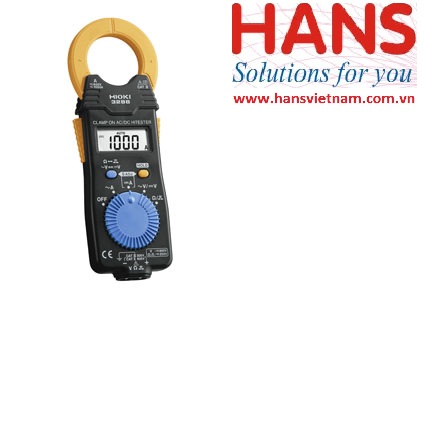

Ampe kìm AC/DC Hioki 3288 (1000A)
Hãng sản xuất: HIOKI- Nhật
Model : HIOKI 3288
Thông số kỹ thuật:
Đo dòng ACA : 100/1000 A (±1.5 % rdg. ±5 dgt. at 50 or 60Hz)
Đo dòng DCA : 100/1000A, ±1.5 % rdg
Đo điện áp DCV : 420.0 m / 4.200 / 42.00 / 420.0 / 600 V, ±1.3 %
Đo điện áp ACV: 4.200 / 42.00 / 420.0 / 600 V, ±2.3 %
Đo điện trở Ω : 420.0 to 42.00 M-ohm, 6 ranges , ±2 %
Thời gian lấy mẫu : 2.5times/Sec
Kiểm tra liên tục, Hiện thị LCD, Khóa
Nguồn : CR2032 (3VDC)x1, Liên tục trong 25h
Đường kính kìm : Ø35 mm
Kích thước : 57x180x16mm
Khối lượng : 150g
Phụ kiện : Que đo 9208, Hộp đựng 9398, HDSD
Basic specifications
|
3288
|
3288-20
|
DC Current
|
100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
|
AC Current
|
100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified),
Basic accuracy: ±1.5 % rdg. ±5 dgt.
|
100.0/ 1000 A, (10 Hz to 500 Hz, True RMS),
Basic accuracy: ±1.5 % rdg. ±5 dgt.
|
DC Voltage
|
419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
|
AC Voltage
|
4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, Average rectified)
|
4.4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, True RMS)
|
Resistance
|
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
|
Crest factor
|
None
|
3 and under (2 at 1000 A range, 1.5 at Voltage)
|
Other function
|
Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
|
Display
|
LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
|
Power supply
|
Coin type lithium battery (CR2032) ×1, Continuous use 60 hours
|
Coin type lithium battery (CR2032) ×1, Continuous use 35 hours
|
Core jaw dia.
|
φ 35 mm (1.38 in)
|
Dimensions, mass
|
57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz)
|
Supplied accessories
|
Instruction Manual ×1, TEST LEAD L9208 ×1, CARRYING CASE 9398 ×1
|
