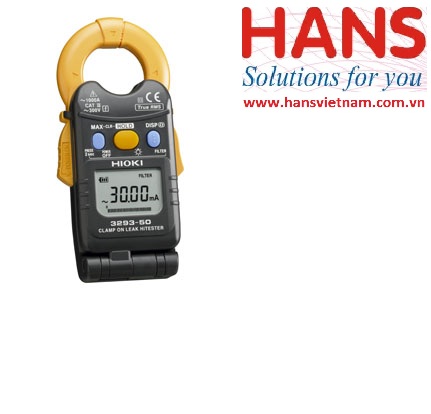

Ampe kìm AC Hioki 3293-50 (1000A, 6 ranges, True Rms)
Hãng sản xuất: HIOKI- Nhật
Model : 3293-50
Thông số kỹ thuật:
ACA : 30/300m/6/60/600/1000A, 6 ranges, 45Hz to 400Hz, True RMS
Độ chính xác : ±1.5% rdg.
Hệ số đỉnh : 2.8
Giá trị min,max, khóa dữ liệu, tự động tắt
Hiện thị : LCD
Nguồn : Lithium battery (CR2032) × 1,
Đường kính kìm : φ 24mm
Kích thước : 50mmW × 130mmH × 26mmD,
Khối lượng : 135g
Phụ kiện : Que đo, hộp đựng, pin, HDSD
Basic specifications
AC Current
|
30.00m/300.0m/6.000/60.00/600.0/1000A, 6 ranges, 45Hz to 400Hz, True RMS
Basic accuracy: ±1.5% rdg. ±5dgt. (50/60Hz, filter ON)
|
AC Voltage
|
n/a
|
Frequency
|
n/a
|
Crest factor
|
2.8 and under (1.68 and under at 1000 A range)
|
Filter function
|
Cut off frequency 180Hz at filter ON (-3dB)
|
Output function
|
n/a
|
Other function
|
Flip-open mechanism (but still retaining proper orientation of display), Back light, Maximum value display, Data hold, Auto power off
|
Display
|
Digital LCD, max. 6000dgt., 91 segments
Display refresh rate: 1.1 sec or higher
|
Power supply
|
Coin type lithium battery (CR2032) × 1, Continuous use 18 hours
|
Core jaw dia.
|
φ 24mm (0.94 in)
|
Dimensions, mass
|
50mm (1.97 in) W × 130mm (5.12 in) H × 26mm (1.02 in) D, 135g (4.8 oz)
|
Supplied accessories
|
CARRYING CASE 9757 ×1, Strap ×1, Instruction manual ×1,
Coin type lithium battery (CR2032, for trial purposes only) ×1
|
