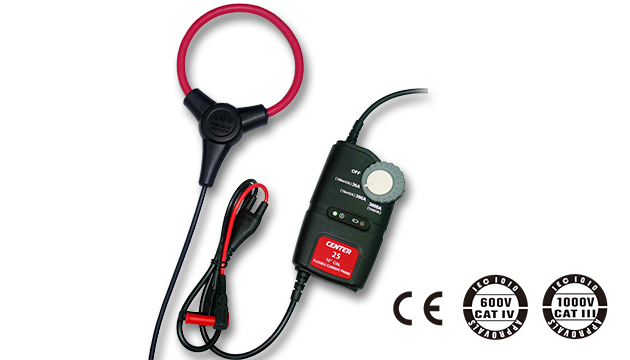

HANS VIỆT NAM chuyên cung cấp Ampe kìm AC với kẹp linh hoạt CENTER 25 tại Việt Nam.
FEATURES
• Measurement Ranges: 30A/300A/3000A AC
• Output Sensitivity: 100mV/10mV/1mV per Amp
• 8.5mm coil diameter allows measurement in tight spaces (Double insulated)
• 10”flexible sensor fit around conductors up to 3.2”in diameter
• 18”flexible sensor fit around conductors up to 5.8”in diameter
• Dual banana plug termination for direct input into DMM
• Flashing LED low battery indicator
SPECIFICATIONS
| Range |
Resolution |
Accuracy |
| 30A/300A/3000A |
100mV/10mV/1mV per A
(AC coupled) |
± 1% of full scale
(45~65Hz) |
| Frequency Range: 45~500Hz |
| Phase Error: < ±1° |
| Position Sensitivity: ± 3% |
| Noise: 0.03A/0.075A/0.5A |
| Sampling Rate: 2 times/sec |
| Battery: 1.5V, size AAA battery x 2 |
| Probe Cable Length: 10"_254mm ; 18"_458mm |
| Dimensions(Meter): 120X70X26 mm |
| Weight: approx. 325g |
