Model: 211

Hãng sản xuất: Balmac

Thông số kỹ thuật:

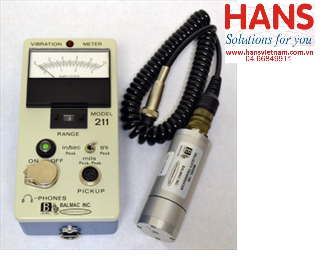

Model 211 Vibration Meter measures overall vibration amplitude in the range of 180 to 200,000 RPMs on rotating machinery. Applications include checking vibration conditions on bearings, motors, fans and pumps. The portable, battery-operated, hand-held Meter features a rugged, heavy-duty pickup for measuring vibration Displacement, Velocity and Acceleration. The Meter includes a 6' coil-cord cable, a 7" probe extension and a magnetic base for the Pickup

Amplitude meter range:
English: 0.03, 0.1, 0.3, 1, 3, 10, 30, 100 mils (peak-topeak)
Displacement, in/sec (peak) Velocity and g’s (peak) Acceleration
Metric: (211M) 1, 3, 10, 30, 100, 300, 1000, 3000 µm (peakto-peak)
Displacement, mm/sec (peak)
Velocity and g’s (peak) Acceleration
Sensitivity:
Displacement: 0.000001 inch (0.001 mil) (1 micro-inch)
Velocity: 0.001 inch/sec (0.02 mm/sec)
Acceleration: 0.001 g
Accuracy: 5% of Full Scale
Frequency
Range: 180 to +120,000 rpm (3 to +2000 Hz

Display: Amplitude Meter (Analog) 2 Scales
(0 to 10 Full Scale Top and
0 to 3 Full Scale Bottom)
Output: Signal for Headphones; 1/4" Mono jack with cover
Controls: ON/OFF pushbutton for power, 3-position toggle for modes
Power: One 9-volt alkaline battery
Temperature: 32E to 122EF (0E to 50EC)
Environmental: Relative humidity 0-95% noncondensing
Dimensions:
Model 211 7" H x 3 1/2" W x 3 " D (17 x 9 x 8 cm)
Carrying Case 13.5" H x 10.5" W x 4.5" D (34 x 26 x 11 cm)
Weight: Unit & accessories 3 lbs (7.6 kg)
