Analog Vibration Meters Balmac 211-S-100

Analog Vibration Meters Balmac 211-S-100

Model: 211-S-100

Hãng sản xuất: Balmac

Thông số kỹ thuật:

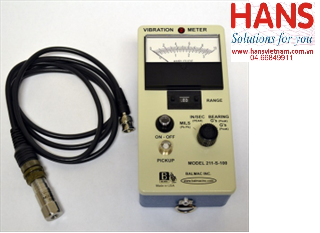

Model 211-S-100 Vibration Meter measures bearing vibration amplitude in all types of rotating machinery. Applications include fans, motors, pumps, gearboxes, compressors, conveyors and other equipment operating from 60 to 600,000 RPMs. The unique Bearing G’s circuitry is a high pass filter that allows operators to measure vibration at high frequencies to detect bearing defects. The Meter includes a 5' straight pickup cable and a magnetic base attachment for the Pickup

Amplitude meter range:

Displacement: 0.03, 0.1, 0.3, 1, 3, 10, 30, 100 mils (peak-to-peak)
Velocity: 0.03, 0.1, 0.3, 1, 3, 10, 30, 100 in/sec (peak)
Acceleration: 0.03, 0.1, 0.3, 1, 3, 10, 30, 100 g’s (peak)
Sensitivity:
Displacement: 0.02 µm
Velocity: 0.02 mm/sec)
Acceleration: 0.001 g
Accuracy: 5% of Full Scale (+/-2.5%)
Frequency range: 60 to 600,000 rpm (1 to +10,000 Hz)
Using Model 601 Pickup
Display: Amplitude Meter (Analog) 2 Scales
(0 to 10 Full Scale Top and
0 to 3 Full Scale Bottom)
Input: Industrial ICP Accelerometer (100 mV/g)
Acceleration Range 80 g peak
Controls: Pushbutton Power and Range
Switches, 4-position Pot Function
Switch
Power: (3) 9-volt Alkaline batteries
Temperature range: 32E to 122EF (0E to 50EC)
Environmental: Relative humidity 0-95% noncondensing
Dimensions: Unit and accessories 17.8H x 8.9W x 7.9D cm
Carrying Case 34.3H x 26.7W x 11.4D cm
Weight: Unit and accessories 2.04 kg
