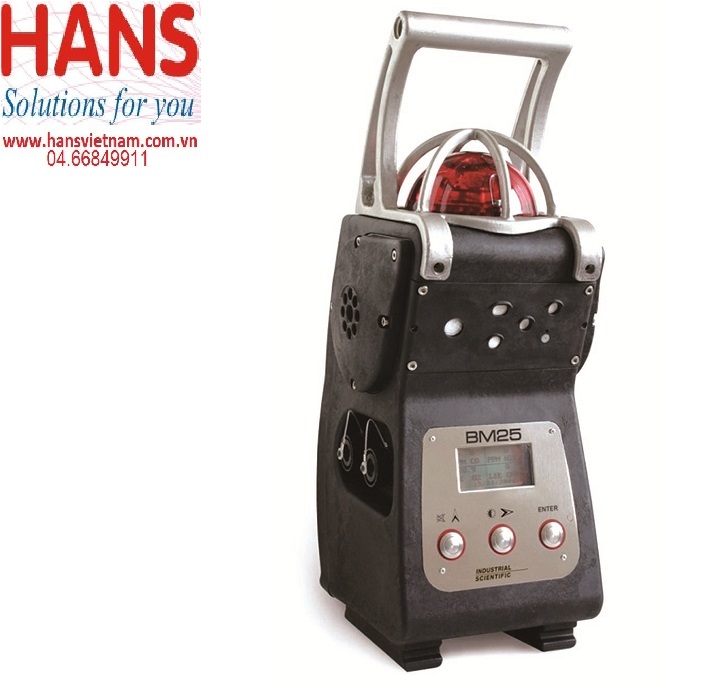

Area monitor Gastron BM25

Dimensions

425 mm x 160 mm x 130 mm (16.7" x 6.3" x 5.1")

Weight

6.8 kg (15 lbs)

Sensors

Combustible Gas - Catalytic Diffusion

Methane, Propane, Butane, Isobutane, LPG, Ethanol, Pentane - Infrared

Oxygen and toxic gases - Electrochemical

CO2 - Infrared

Isobutylene - PID

Display

Graphic liquid crystal display w/backlight

Datalogging Capacity

700 hours w/5 gases

Audible Alarm

103 dB @ 1 meter

Visual Alarm

Ultra-bright LED beacon visible 360 degrees

Operating Temperature Range

-20℃ to +50℃ typical

Operating Humidity Range

15%-95% non-condensing (continuous) typical

Power Source (Runtime)

NiMH; Run Time: 170 hours maximum operating time, 100 hours typical

Recharge Time

4.5 hours typical

Certifications

CSA - Class 1, Groups A,B,C,D T4; EX ia d IIC T4; C22.2 No. 152
(Excluding Aspirated and PID Configurations)

IECEx/ATEX EEx ia d I/IIC; IP66 Equipment Group and Catagory: I I 2G / I M2
