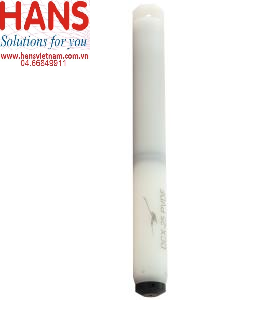

Autonomous data collector Keller DCX-25 PVDF

Autonomous data collector Keller DCX-25 PVDF

Model: DCX-25 PVDF

Hãng sản xuất: Keller

Thông số kỹ thuật:

The DCX-25 PVDF is an autonomous, battery powered instrument designed to record water depth (pressure) and temperature over long periods. The housing is made of polyvinylidene fluoride and the sensing diaphragm is available in either Hastelloy C-276 or titanium 6AL-4V. This combination of wetted materials ensures compatibility with even the most aggressive media.

This data collector (Ø 25 mm) integrates a pressure sensor, electronics and battery in one housing. The electronics employ the latest microprocessor technology, which give high accuracy and resolution for the pressure and temperature signals. The built-in pressure sensor is mathematically compensated for all linearity and temperature errors. The use of a non-volatile memory ensures high data security

Pressure Ranges: 10 mWC (0,8…2,3 bar); 20 mWC (0,8…3,0 bar); 50 mWC (0,8…6,0 bar); 100 mWC (0,8…11,0 bar)

Linearity: typ. ± 0,02 %FS

Error Band (-10…40 °C): typ. 0,05 %FS; max. 0,1 %FS

Resolution: max. 0,0025 %FS
