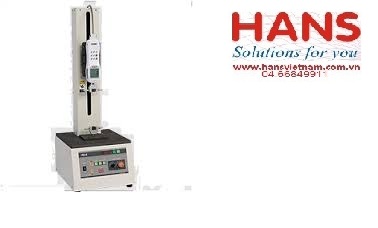

Bàn đo lực Aikoh 1309
Model : 1309
Hãng sản xuất: Aikoh
Thông số kỹ thuật:
Maximum load
1kN (100kgf)
Accuracy
By a digital push-pull gauge RX to be used
Test speed
10 ~ 300 mm / min.
Speed switching
LO: 10 mm / min. MD: 100 mm / min. HI: 200 mm / min. VR: 10 ~ 300 mm / min.
※
The above rate is the standard setting. If you can specify when ordering, it can be changed with the setting in the test speed.
Stroke
400mm
Display resolution
0.1mm
Displacement display (maximum display)
± 400mm
Size of table
295 × 175mm
Mass
About 35Kg
Size
W300 × D340 × H850mm
Power supply
AC100V ~ 120V / AC200 ~ 240V
Tags: Thiết Bị Đo Lực, Mô Men Xoắn
