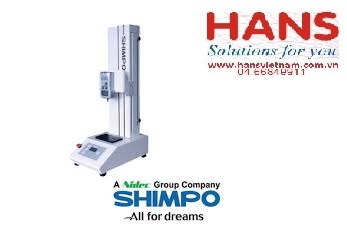

Bàn đo lực Shimpo FGS-50E
Model : FGS-50E
Hãng sản xuất: Shimpo
Thông số kỹ thuật:
Series
FGS-50E
Model
FGS-50E-L (low-speed specification)
FGS-50E-H (high speed specification)
Measurement load
500N (50kg)
Withstand load
Feed rate
6-180mm / min
20-600mm / min
Speed setting
On the operation panel, and set the speed
Stroke
400mm
Display
LCD 3-digit, movement speed, display the operating mode
Movement speed
Action mode
Manual (MAU), inching (JOG), 1 cycle (SIG), round-trip repeat (CON)
Input
Overload input stops at the overload signal of FGPX (FGP)
Measuring table
150 × 93mm
Operating temperature limit
0-45 ℃ (however, with no condensation)
Power supply
AC100V-AC240V ± 10%
Mass
About 20kg
External dimensions
220 × 680 × 358mm
Accessories
- Connection cable 1 power supply cable single cable clip one -socket bolt (M4 × 12 force gauge mounting four for, M6 × 12 jig two for mounting) one for-hexagon wrench M8, for M4 one owner manual book Warranty one
Compatible models (corresponding digital force gauge)
FGP series (0.2-50), FGPX (0.2-50)
