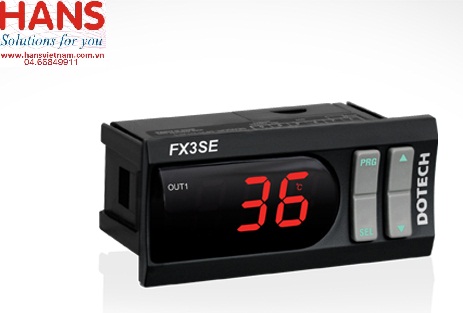

Bộ điều chỉnh nhiệt độ Dotech FX3SE

0₫

Nhà Sản Xuất Dotech
Mã Sản Phẩm FX3SE

Bộ điều chỉnh nhiệt độ Dotech FX3SE

Model: FX3SE

Hãng sản xuất: Dotech

Thông số kỹ thuật:

		FX3SE-05P-00-C* or FX3SE-05P-00-F*	FX3SE-10P-00-C* or FX3SE-10P-00-F*	FX3SE-16P-00-C* or FX3SE-16P-00-F*
Dimensions		78(W) X 35(H) X 78(D)mm ※ Panel Cut-Out Form 71(W) X 29(H)mm
Power		100~240Vac, 50/60Hz
Power Consumption		4W
Connection		Screw Terminal(Up to 1.5㎟ Wire)
Input Output	Analog Input	1P(NTC)
Input Output	Relay Output	1P(250Vac/5A)	1P(250Vac/10A)	1P(250Vac/16A)
Sensor	Temperature	Dotech Standard NTC Sensor DPR-TH01-AT5(Optional) Type: NTC 5㏀ at 25℃ Range: -50~105℃ Accuracy: ±0.3℃ at 25℃
Operation		Temperature -10~50℃ / Humidity under 90% RH
Storage		Temperature -20~60℃ / Humidity under 90% RH

* C is a model for Celsius and F for Fahrenheit.
Accessories

Category	Model	Specifications
Temperature Sensor	DPR-TH01-AT5	Type: NTC 5KΩ Range: -50 ~ 105℃ Accuracy: ±0.3℃ at 25℃

Bộ điều chỉnh nhiệt độ Dotech FX3SE

Model: FX3SE

Hãng sản xuất: Dotech

Thông số kỹ thuật:

		FX3SE-05P-00-C* or FX3SE-05P-00-F*	FX3SE-10P-00-C* or FX3SE-10P-00-F*	FX3SE-16P-00-C* or FX3SE-16P-00-F*
Dimensions		78(W) X 35(H) X 78(D)mm ※ Panel Cut-Out Form 71(W) X 29(H)mm
Power		100~240Vac, 50/60Hz
Power Consumption		4W
Connection		Screw Terminal(Up to 1.5㎟ Wire)
Input Output	Analog Input	1P(NTC)
Input Output	Relay Output	1P(250Vac/5A)	1P(250Vac/10A)	1P(250Vac/16A)
Sensor	Temperature	Dotech Standard NTC Sensor DPR-TH01-AT5(Optional) Type: NTC 5㏀ at 25℃ Range: -50~105℃ Accuracy: ±0.3℃ at 25℃
Operation		Temperature -10~50℃ / Humidity under 90% RH
Storage		Temperature -20~60℃ / Humidity under 90% RH

* C is a model for Celsius and F for Fahrenheit.
Accessories

Category	Model	Specifications
Temperature Sensor	DPR-TH01-AT5	Type: NTC 5KΩ Range: -50 ~ 105℃ Accuracy: ±0.3℃ at 25℃
