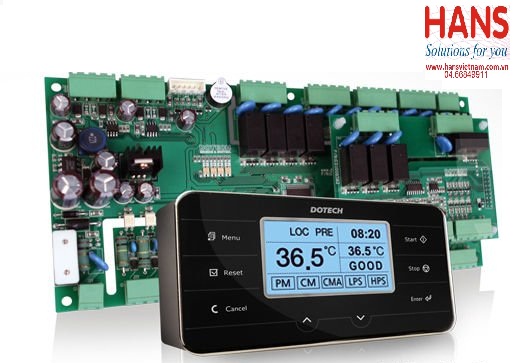

Bộ điều khiển Dotech BX1600

0₫

Nhà Sản Xuất Dotech
Mã Sản Phẩm BX1600

Bộ điều khiển Dotech BX1600

Model: BX1600

Hãng sản xuất: Dotech

Thông số kỹ thuật:

			BX1600L
Control Module	Dimensions		240(W) x 110(H) x 60(D)mm
	Power		24 Vac +/-15 %, 50/60Hz
	Digital	Input	16 Points, 12 Vdc 4 mA
	Digital	Output	16 Points, 250 Vac / 5 A
	Analog	Input	12-Point NTC Temperature Sensor 4-Point 4~20 mA
	Communication		2-Channel RS485 MODBUS RTU/ASCII Slave
	Additional function		Reverse Phase(Phase Loss) Detection
	Operation Environment		Temperature -10~60 ℃(No Condensation)
	Storing Environment		Temperature -20~80 ℃(No Condensation)
Display Module (Optional)	Model		CPAD-BX1600
	Power		8 ~ 12 Vdc
	Communication		RS485 MODBUS Master (9600BPS)
	Display		LCD FSTN, 128X64 Dots, White LED Backlight
	Switch		Electrostatic Touch Switch 8EA
	Lamp		LED 8EA
	Dimensions		156(W) X 82(H), Depth within 20mm
	Protection Class (Front cover)		IP65(Gasket)
	Operation Environment		Temperature -10~60 ℃(No Condensation)
	Storing Environment		Temperature -20~80 ℃(No Condensation)

Accessories

Category		Model	Specifications
Power Trans		24069001	220Vac to 24Vac, 30VA
Temp. Sensor	Discharge gas temperature	DPR-TH02-P6D100L	Type: NTC 10KΩ Temperature range: -40 ~ 150℃ Accuracy: ±0.3℃ at 25℃
	Inlet/outlet temperature	DPR-TH01-S6D100L	Type: NTC 5KΩ Temperature range: -50 ~ 105℃ Accuracy: ±0.3℃ at 25℃
	Ambient Temperature Suction Temperature Evaporation Temperature	DPR-TH01-ET-3M	Type: NTC 5KΩ Temperature range: -50 ~ 105℃ Accuracy: ±0.3℃ at 25℃

Bộ điều khiển Dotech BX1600

Model: BX1600

Hãng sản xuất: Dotech

Thông số kỹ thuật:

			BX1600L
Control Module	Dimensions		240(W) x 110(H) x 60(D)mm
	Power		24 Vac +/-15 %, 50/60Hz
	Digital	Input	16 Points, 12 Vdc 4 mA
	Digital	Output	16 Points, 250 Vac / 5 A
	Analog	Input	12-Point NTC Temperature Sensor 4-Point 4~20 mA
	Communication		2-Channel RS485 MODBUS RTU/ASCII Slave
	Additional function		Reverse Phase(Phase Loss) Detection
	Operation Environment		Temperature -10~60 ℃(No Condensation)
	Storing Environment		Temperature -20~80 ℃(No Condensation)
Display Module (Optional)	Model		CPAD-BX1600
	Power		8 ~ 12 Vdc
	Communication		RS485 MODBUS Master (9600BPS)
	Display		LCD FSTN, 128X64 Dots, White LED Backlight
	Switch		Electrostatic Touch Switch 8EA
	Lamp		LED 8EA
	Dimensions		156(W) X 82(H), Depth within 20mm
	Protection Class (Front cover)		IP65(Gasket)
	Operation Environment		Temperature -10~60 ℃(No Condensation)
	Storing Environment		Temperature -20~80 ℃(No Condensation)

Accessories

Category		Model	Specifications
Power Trans		24069001	220Vac to 24Vac, 30VA
Temp. Sensor	Discharge gas temperature	DPR-TH02-P6D100L	Type: NTC 10KΩ Temperature range: -40 ~ 150℃ Accuracy: ±0.3℃ at 25℃
	Inlet/outlet temperature	DPR-TH01-S6D100L	Type: NTC 5KΩ Temperature range: -50 ~ 105℃ Accuracy: ±0.3℃ at 25℃
	Ambient Temperature Suction Temperature Evaporation Temperature	DPR-TH01-ET-3M	Type: NTC 5KΩ Temperature range: -50 ~ 105℃ Accuracy: ±0.3℃ at 25℃
