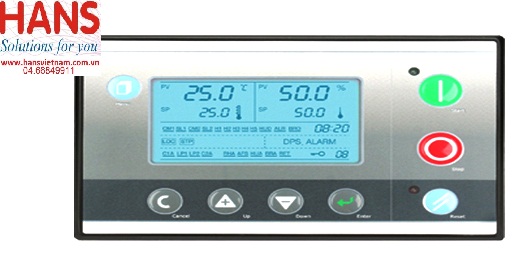

Bộ điều khiển nhiệt độ độ ẩm Dotech DX140

Dimensions

230(W) x 150(H) x 45(D)

Mount

204(W) x 90(H), Mount Hole Ø5 x 4EA

Power

AC24V, 50/60Hz or DC24V Max. 20VA

Power Trans(24069001) - Optional

Digital

Input

Opto-Isolation 10EA(5X2 common), AC24V or DC24V

Output

Relay Contact, 12EA(4X3 common), 250V 10A

Analog

Input

NTC 3EA(Max. 5), 4~20mA 2EA

Output

-

3Ch Analog Output
4~20mA (PID Control)

3Ch Analog Output
4~20mA (PID Control)

Communication

-

-

RS485(Half-Duplex Type)
1 channel(MODBUS RTU)

Screen & Touch

5" LCD (240 X 128) / LED Backlit / Membrane Keypad

Operation

Temperature -10~60℃ / Humidity 5~95%RH No Condensation State

Storage

Temperature -30~80℃ / Humidity 5~95%RH No Condensation State

Temperature Sensor Input

1

Humidity Sensor Input

1

Refrigerator Compressor
Control Step

2

Heater Control Step

5

Humidify Control Step

2

Main Browser Fan
On/Off Control

1

Cool/Dehumify
Analog Control

OK(PID Control)

Cooling Analog Control

OK(PID Control)

Heating Analog Control

OK(PID Control)

Humidify Analog Control

OK(PID Control)

Diff. Pressure
Analog Control

OK(PID Control)

Category

Model

Mount Type

Specifications

Power Trans

24069001

AC220V to AC24V, 30VA

Temperature
/Humidity Sensors

HTX73D-FPC-N5K

Duct

Temperature: NTC 5K
Humidity : 4-20mA

HTX73W-FPC-N5K

Wall

Temperature: NTC 5K
Humidity : 4-20mA

HTX32C-10-N5K

Room

Temperature: NTC 5K
Humidity : 4-20mA

HTX23-FPC-N5K

Embedded(OEM)

Temperature: NTC 5K
Humidity : 4-20mA

Model

Descriptions

Qty (EA)

Controller & Accessories

DX140
(Exclusive Controller for
Constant
Temp.& Humidity Unit)

Controller

1

DX140

Transformer

1

TR,220/24V(30VA),PN:24069001

Duct Type - HTX73D-FPC-502

1

Select one among
sensor type on the left

Wall Type - HTX73W-FPC-502

OEM Type - HTX23-FPC-502

Room Type - HTX32-10
