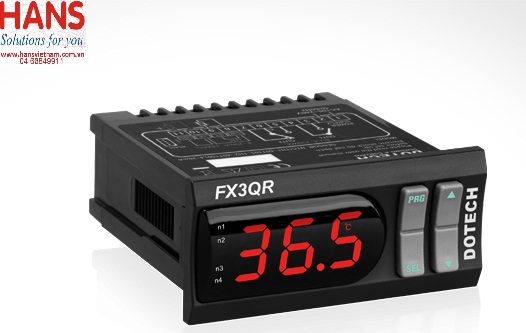

Bộ điều khiển nhiệt độ Dotech FX3QR

0₫

Nhà Sản Xuất Dotech
Mã Sản Phẩm FX3QR

Bộ điều khiển nhiệt độ Dotech FX3QR

Model: FX3QR

Hãng sản xuất: Dotech

Thông số kỹ thuật:

		FX3Q-RTD-00	FX3Q-RTD-A1	FX3Q-RTD-R4
Dimensions		78(W) X 35(H) X 78(D)mm Panel Cut-Out Form 71(W) X 29(H)mm
Power		100~240Vac, 50/60Hz
Power Consumption		4VA
Connection		Screw Terminal(Up to 1.5㎟ Wire)
Input Output	Temperature Sensor Input	1P(PT100)
Input Output	Relay Output	4P(N1, N2: 250Vac/10A, N3, N4: 250Vac/5A)
Sensor	Temperature	PT100 Wire: 2 or 3 Range: -200~800℃ Accuracy: ±0.3℃
Analog Signal Output(4-20mA)		-	OK	-
RS485 Communication (MODBUS RTU/ASCII)		-	-	OK
Display Unit		0.1℃ in -19.9~99.9℃ and 1℃ in other ranges.
Operation		Temperature -10~50℃ / Humidity under 90% RH
Storage		Temperature -20~60℃ / Humidity under 90% RH

Bộ điều khiển nhiệt độ Dotech FX3QR

Model: FX3QR

Hãng sản xuất: Dotech

Thông số kỹ thuật:

		FX3Q-RTD-00	FX3Q-RTD-A1	FX3Q-RTD-R4
Dimensions		78(W) X 35(H) X 78(D)mm Panel Cut-Out Form 71(W) X 29(H)mm
Power		100~240Vac, 50/60Hz
Power Consumption		4VA
Connection		Screw Terminal(Up to 1.5㎟ Wire)
Input Output	Temperature Sensor Input	1P(PT100)
Input Output	Relay Output	4P(N1, N2: 250Vac/10A, N3, N4: 250Vac/5A)
Sensor	Temperature	PT100 Wire: 2 or 3 Range: -200~800℃ Accuracy: ±0.3℃
Analog Signal Output(4-20mA)		-	OK	-
RS485 Communication (MODBUS RTU/ASCII)		-	-	OK
Display Unit		0.1℃ in -19.9~99.9℃ and 1℃ in other ranges.
Operation		Temperature -10~50℃ / Humidity under 90% RH
Storage		Temperature -20~60℃ / Humidity under 90% RH
