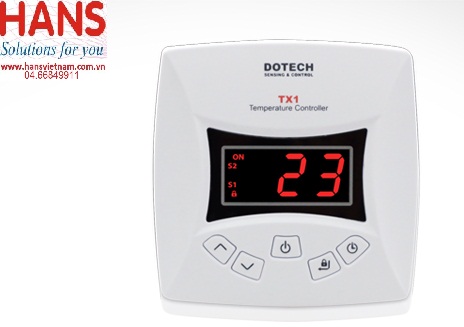

Bộ điều khiển nhiệt độ Dotech TX1

0₫

Nhà Sản Xuất Dotech
Mã Sản Phẩm TX1

Bộ điều khiển nhiệt độ Dotech TX1

Model: TX1

Hãng sản xuất: Dotech

Thông số kỹ thuật:

		TX1-00
Dimensions		85(W) X 85(H) X 42(D)mm
Power		85 ~ 265Vac, 50/60Hz, 4VA
Connection		Screw Terminal
Input/Output	Temperature Sensor Input	Built-In: 1P External: 1P
Input/Output	Relay Output	1P(250VAC/16A)
Sensor	Temperature	Built-In: 1P External: 1P DOTECH Standard NTC sensor DPR-TH05-T1(optional) Type: 5㏀ at 25℃ Range: -40~120℃ Accuracy: ±0.3℃ at 25℃ DOTECH Standard NTC sensor DPR-TH05-T20(optional) Type: 5㏀ at 25℃ Range: -40~120℃ Accuracy: ±0.3℃ at 25℃
Operation		Temperature -10~50℃ / Humidity under 90% RH
Storage		Temperature -20~60℃ / Humidity under 90% RH

Accessories
