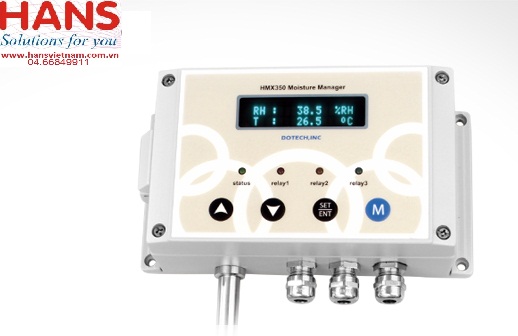

Bộ đo thông số không khí Dotech HMX350

Dimensions

184(W) X 100(H) X 65(D)mm

Power

15 - 32Vdc or 12 - 24Vac

Power Consumption

200mA(24Vdc)

Cable Fitting

Three M12(Aluminum)

Connection

Screw Terminal up to 1.5㎟(AWG 16)

Temperature
Sensor

Range

-50~200℃
(220℃ - Short Term)

Element

PT100(Tolerance Class A)

Accuracy

±0.2°C(Full Range)

Humidity
Sensor

Range

0~100%RH

Accuracy
(Incluidng Hysteresis,
Non-Linearity, and Repeatability)

Standard: ±2.0%RH(0~90%RH), ±3.0%RH(90~100%RH)
Special Calibration: ±1.0%RH(0~90%RH), ±2.0%RH(90~100%RH)

Response Time with
Metal Grid Filter at 20°C/t90

< 15 sec.

Analog Signal Output

4-20mA(3 Points), Load Resistance ≤ 500Ω
User-Configurable

Relay Output

Contact(3 Points)
User-Configurable

Pressure Range for Pressure Tight Probe

0.01~20bar(0.15~300psi)

System Requirements for Software

Windows 2000 or Later, Serial Interface

Housing/Protection Class

Al/IP65(NEMA 4)

Mount

Wall

Remote Probe

-

OK

OK(High Pressure)

Operation

Temperature -40~60℃(Electronic Parts)

Storage

Temperature -40~60℃(Electronic Parts)
