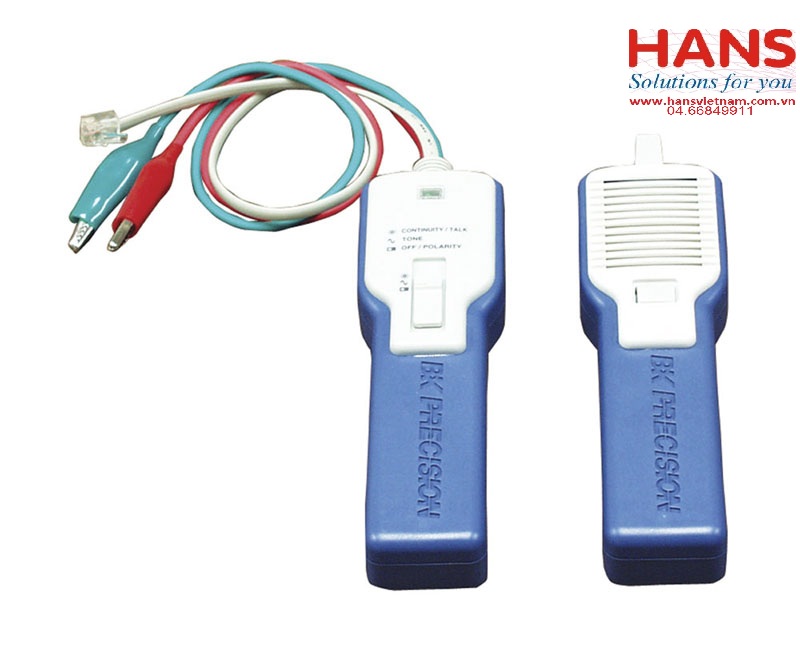

Bộ kít kiểm tra cáp tín hiệu BK Precision 262

Bộ kít kiểm tra cáp tín hiệu BK Precision 262

Hãng sản suất: BK Precision-Mỹ

Model: 262

Thông số kỹ thuật:

- Cable Tracer:

+ Hi-gain, Hi-impedance amplifier

+ Capable of identifying tones up to 12 inches away

+ Rugged, moisture resistant, Mylar cone speaker

- Đầu phát Tone Generator:

+ Generates Warbled Tone with selectable test frequencies

+ LED indicates continuity when in CONTINUITY mode

+ LED indicates positive polarity when in POLARITY mode

+ Provides talk current on a dead line

+ Check line Polarity

- Cable Tracer Specifications:

- Dimensions: 187.1 x 47.5 x 28.4 mm

- Weight:  4.9 oz. (138.9 g)

- Power: 9-volt battery

- Tone Generator Specifications:

- Tone Output Level: 8 vp-p

- Tone Output Current:4 mA

- Tone Frequency: 1.4KHz to 1KHz or 0.84KHz to 0.7KHz with switching freq. of 14Hz or 7Hz

- Continuity / Talk Test: 35mA (leads shorted), 6.5 VDC (leads open)

- Dimensions: 177.8 x 47.5 x 28.4 mm

- Weight: 164.4 g

- Power: Standard 9-volt battery

Tags:  thiết bị kiểm tra cáp tín hiệu, thiết bị kiểm tra cáp, Cable Tracer
