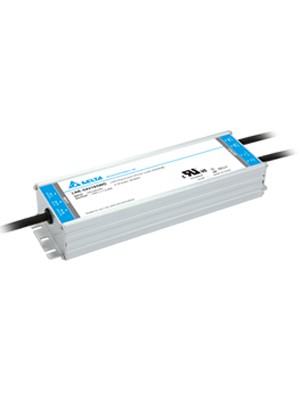

BỘ NGUỒN CÔNG NGHIỆP DELTA LNE-48V100WACA

0₫

Nhà Sản Xuất DELTA
Mã Sản Phẩm LNE-48V100WACA

Mô tả
Bình luận

BỘ NGUỒN CÔNG NGHIỆP DELTA LNE-48V100WACA - LED DRIVER

OUTPUT

Nominal Output Voltage	48V
Output Voltage Adjustment Range	43.0-53.0V
Output Current Adjustment Range	1.0-2.0A
Output Current	2A
Output Power	96W
Line Regulation	± 0.5% (@ 90-264Vac input)
Load Regulation	± 0.5% (@ 90-264Vac input, 0-100% load)
PARD (20mhz)	< 200mVpp
Start-up Time	1200ms typ. @ 115Vac (100% load) 500ms typ. @ 230Vac & 277Vac (100% load)
Hold-up Time	16ms typ. @ 115Vac & 230Vac & 277Vac (100% load)
Dynamic Response (Overshoot & Undershoot O/P Voltage)	± 5% @ 0-100% load (Slew Rate: 0.1A/µS)± 5% @ 0-90% load , @ 115Vac & 230Vac & 277Vac (Slew Rate: 0.1A/µS)

INPUT

Nominal Input Voltage	100-240Vac
Input Voltage Range	90-264Vac
Nominal Input Frequency	50-60Hz
Input Frequency Range	47-63Hz
Input Current	1.30A max. @ 115Vac, 0.65A max. @ 230Vac, 0.60A max. @ 277Vac
Efficiency at 100% load	92.0% typ. @ 115Vac, 93.0% typ. @ 230Vac & 27
Max Inrush Current	65A typ. @ 230Vac
Power Factor at 100% load	0.98 typ. @ 115Vac, 0.95 typ. @ 230Vac, 0.93 typ. @ 277Vac
Leakage Current	< 0.75mA @ 264Vac

MECHANICAL

Case Cover / Chassis	Aluminium
Dimensions	220 x 68 x 38.8 mm 8.66" x 2.68" x 1.53"
Unit Weight	0.98kg (2.16 lb)
Cooling System	Convection

ENVIRONMENT

Surrounding Air Temperature operating	-40°C to +70°C
Surrounding Air Temperature storage	-40°C to +85°C
Power De-rating	> 60°C de-rate power by 4% / °C < 100Vac de-rate power by 2% / Vac
Operating Humidity	5 to 95% RH (Non-Condensing)
Shock Test (Non-Operating)	IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions
Vibration Test (Non-Operating)	IEC 60068-2-6, Random: 5Hz to 500Hz (2.09G); 20 min per axis for all X, Y, Z direction

PROTECTIONS

Overvoltage	55.2-67.2V, Latch Mode
Overload / Overcurrent	95-108% of rated load current, constant current limit, Auto-Recovery when the fault is removed
Over Temperature	Hiccup Mode, Auto-Recovery when the fault is removed
Short Circuit	Constant current limit, Auto-Recovery when the fault is removed
Degree of Protection	IP65
Protection Against Shock	Class I with Primary Earth connection

RELIABILITY

MTBF	> 700,000 hrs. as per Telcordia SR-332 I/P: 115Vac, O/P: 100% load, Ta: 25°C

SAFETY

Electrical Safety	CB scheme to IEC 61347-1, IEC 61347-2-13 ENEC to EN 61347-1, EN 61347-2-13, EN 62384 CCC to GB19510.1, GB19510.14 KC to KC61347-1, KC61347-2-13, KC62384 PSE to J61347-1, J61347-2-13
CE	In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC
Galvanic Isolation	Input to Output: 3.85kVac Input to Ground: 2.0kVac Output to Ground: 1.5kVac

EMC

Emission	CISPR 15, EN 55015, GB17743 Compliance to CISPR 22, EN 55022, FCC Title 47: Class B
Immunity	EN 61547, Compliance to EN 55024
Harmonic Current Emissions	IEC/EN 61000-3-2, Class C; GB17625.1 (THD conditions: 115Vac & 230Vac @ ≥ 60% load, 277Vac @ ≥ 75% load)
Voltage Fluctuation and Flicker	IEC/EN 61000-3-3
