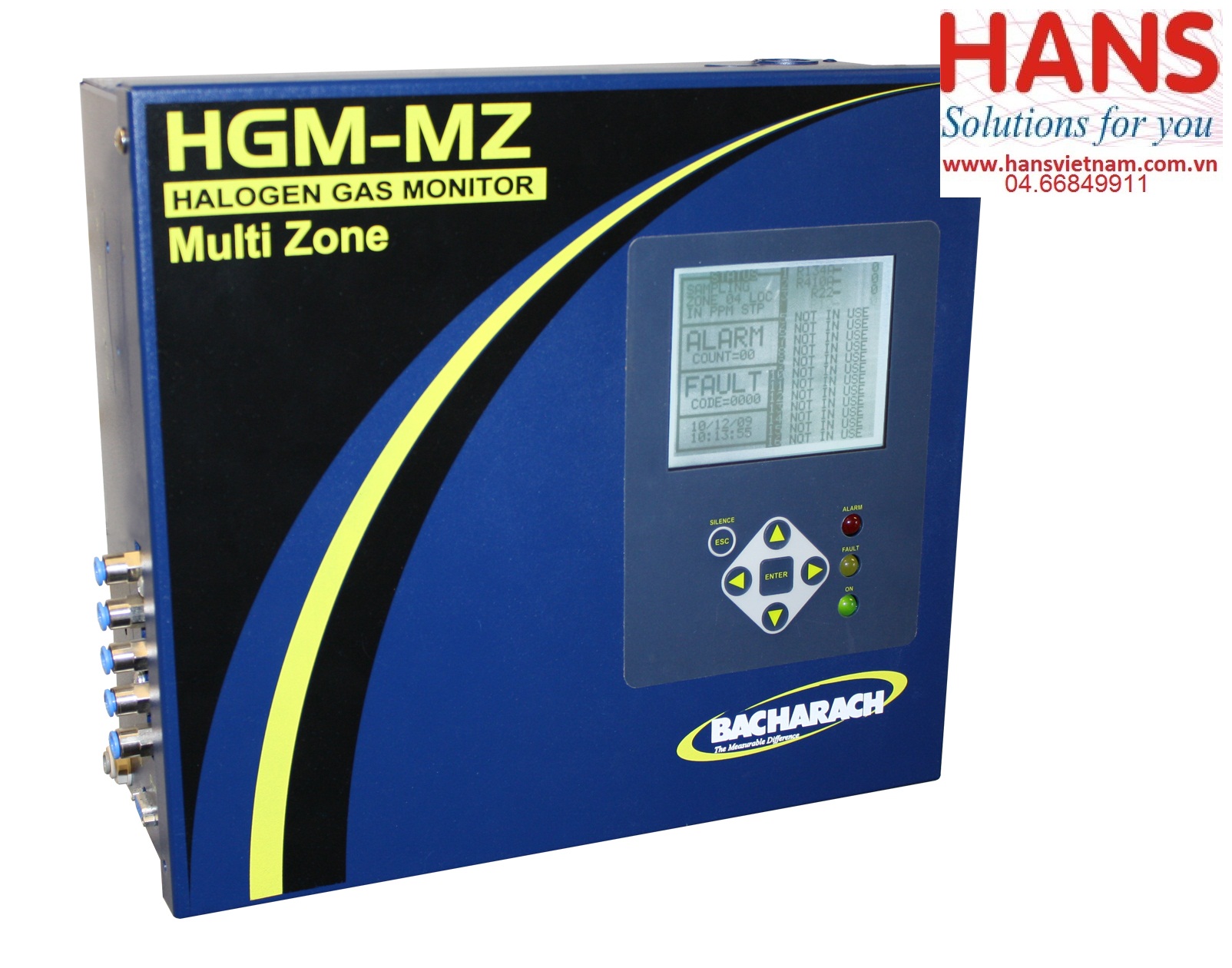

Bộ phát hiện khí Bacharach HGM-MZ

0₫

Nhà Sản Xuất Bacharach
Mã Sản Phẩm HGM-MZ

Bộ phát hiện khí Bacharach HGM-MZ

Model: HGM-MZ

Hãng sản xuất: Bacharach

Thông số kỹ thuật:

Type	4 to 16 point sampling system using IR sensor technology
Gases	Refrigerants:	CFCs, HFCs, HCFCs, HFOs
	Natural Refrigerants:	Ammonia, Carbon Dioxide
Measuring Range *	Refrigerants 0 to 10,000 ppm Ammonia 25 to 10,000 ppm Carbon Dioxide 300 to 8,000 ppm
Sensitivity *	Refrigerants 1 ppm Ammonia 25 ppm Carbon Dioxide 10 ppm
Sampling Distance	0 to 1,200 ft. (0 to 365 m) for each sampling point
Display	Backlit, graphic LCD 160 x 128 pixel; three status LEDs
Output	Digital	Modbus® RTU via RS 485
Output	Analog	4 to 20 mA (optional)
Power Supply	100 to 240 VAC, 50 / 60 Hz
Relay	3 alarm relays, 1 fault relay, SPDT
	Rating 5 A @ 250 VAC, resistive load
Ambient Conditions	Temperature	32 to +122 °F (0 to +50 °C)
	Humidity	5 to 90 %RH, non condensing
	Altitude	0 to 6,560 ft (2,000 m)
Enclosure	Powder-coated aluminum
Size (W x H x D)	Approx. 13.7” x 12.3” x 5” (350 x 315 x 130 mm)
Weight	Approx. 15 lbs. (6.8 kg)
Approvals	CE, UL, CSA, EN 61010-1, EN 61326, EN 14624

Bộ phát hiện khí Bacharach HGM-MZ

Model: HGM-MZ

Hãng sản xuất: Bacharach

Thông số kỹ thuật:

Type	4 to 16 point sampling system using IR sensor technology
Gases	Refrigerants:	CFCs, HFCs, HCFCs, HFOs
	Natural Refrigerants:	Ammonia, Carbon Dioxide
Measuring Range *	Refrigerants 0 to 10,000 ppm Ammonia 25 to 10,000 ppm Carbon Dioxide 300 to 8,000 ppm
Sensitivity *	Refrigerants 1 ppm Ammonia 25 ppm Carbon Dioxide 10 ppm
Sampling Distance	0 to 1,200 ft. (0 to 365 m) for each sampling point
Display	Backlit, graphic LCD 160 x 128 pixel; three status LEDs
Output	Digital	Modbus® RTU via RS 485
Output	Analog	4 to 20 mA (optional)
Power Supply	100 to 240 VAC, 50 / 60 Hz
Relay	3 alarm relays, 1 fault relay, SPDT
	Rating 5 A @ 250 VAC, resistive load
Ambient Conditions	Temperature	32 to +122 °F (0 to +50 °C)
	Humidity	5 to 90 %RH, non condensing
	Altitude	0 to 6,560 ft (2,000 m)
Enclosure	Powder-coated aluminum
Size (W x H x D)	Approx. 13.7” x 12.3” x 5” (350 x 315 x 130 mm)
Weight	Approx. 15 lbs. (6.8 kg)
Approvals	CE, UL, CSA, EN 61010-1, EN 61326, EN 14624
