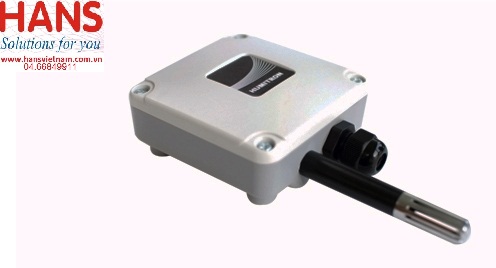

Bộ truyền nhiệt độ, độ ẩm Dotech HTX73

0₫

Nhà Sản Xuất Dotech
Mã Sản Phẩm HTX73

Bộ truyền nhiệt độ, độ ẩm Dotech HTX73

Model: HTX73

Hãng sản xuất: Dotech

Thông số kỹ thuật:

		HTX73W- FTC -	HTX73W- FHC -	HTX73W- FBC -	HTX73W- FPC- PT100	HTX73W- FBC- PT100
Dimensions		83(W) X 83(H) X 42.7(D)mm (Cable Fitting and Probe/Filter Not Included)
Power		24Vdc(6~30Vdc) or 24Vac
Connection		Plug Type, 2~5pins Terminal Block, 14~22AWG
Temperature	Range	-30~70°C, -20~80°C, -10~60°C
	Accuracy	±0.5°C
	Sensing Element	PT100Ω Class A
	Output	4~20mA	-	4~20mA	Passive Elements(PT100Ω)
Humidity	Range	0~100%RH(No Condensation)
	Accuracy	±3.0%RH
	Linearity	±0.5%RH
	Repeatability	±0.5%RH
	Response	15Sec. (25°C, Under the Low Velocity of Wind)
	Output	4~20mA (2Wires)			4~20mA (2Wires)	-
Sensor Protection		ABS + Mesh Filter
Housing		ABS, Water-proof Structure (IP65)
Cable Fitting		PG9 (Bright Black, Anti-Drag, 3~6.5mm)
Weight		105g

Bộ truyền nhiệt độ, độ ẩm Dotech HTX73

Model: HTX73

Hãng sản xuất: Dotech

Thông số kỹ thuật:

		HTX73W- FTC -	HTX73W- FHC -	HTX73W- FBC -	HTX73W- FPC- PT100	HTX73W- FBC- PT100
Dimensions		83(W) X 83(H) X 42.7(D)mm (Cable Fitting and Probe/Filter Not Included)
Power		24Vdc(6~30Vdc) or 24Vac
Connection		Plug Type, 2~5pins Terminal Block, 14~22AWG
Temperature	Range	-30~70°C, -20~80°C, -10~60°C
	Accuracy	±0.5°C
	Sensing Element	PT100Ω Class A
	Output	4~20mA	-	4~20mA	Passive Elements(PT100Ω)
Humidity	Range	0~100%RH(No Condensation)
	Accuracy	±3.0%RH
	Linearity	±0.5%RH
	Repeatability	±0.5%RH
	Response	15Sec. (25°C, Under the Low Velocity of Wind)
	Output	4~20mA (2Wires)			4~20mA (2Wires)	-
Sensor Protection		ABS + Mesh Filter
Housing		ABS, Water-proof Structure (IP65)
Cable Fitting		PG9 (Bright Black, Anti-Drag, 3~6.5mm)
Weight		105g
