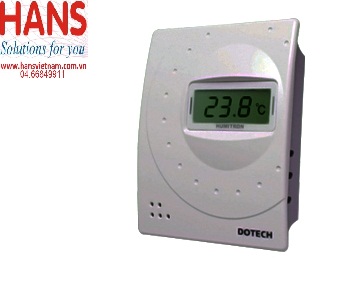

Bộ truyền nhiệt độ, độ ẩm trong nhà Dotech HTX32C

0₫

Nhà Sản Xuất Dotech
Mã Sản Phẩm HTX32C

Bộ truyền nhiệt độ, độ ẩm trong nhà Dotech HTX32C

Model: HTX32C

Hãng sản xuất: Dotech

Thông số kỹ thuật:

		HTX32C-01	HTX32C-10	HTX32C-10 -PT100	HTX32C-11
Dimensions		85(W) X 100(H) X 25(D)mm
Power		9~32Vdc / 12~24Vac
Connection		Terminal Block 14...22AWG
Temperature	Range	-5...55°C
	Accuracy	±0.3°C@25°C
	Repeatability	±0.1°C
	Response	5~30 Sec., 1/e (63%)
	Output	-	4~20mA (0~50℃: Range Configurable)
Humidity	Range	0~95%RH
	Accuracy	±2.0%RH(30~70%RH), ±3.0%RH(10~90%RH)
	Repeatability	±0.1%RH
	Response	Max. 10sec. : 1/e (63%) at 25°C, 1m/s air
	Output	-	4~20mA
Passive Output		-	-		-
Communication RS485(MODBUS RTU/ASCII)		OK	-	-	OK
Self Diagnostic		Sensor Element Error Detection
Housing		PC-ABS, IP20
Weight		30g
Operation		Temperature -5~55°C / Humidity under 95%RH
Storage		Temperature -25~60℃ / Humidity under 95%RH

Bộ truyền nhiệt độ, độ ẩm trong nhà Dotech HTX32C

Model: HTX32C

Hãng sản xuất: Dotech

Thông số kỹ thuật:

		HTX32C-01	HTX32C-10	HTX32C-10 -PT100	HTX32C-11
Dimensions		85(W) X 100(H) X 25(D)mm
Power		9~32Vdc / 12~24Vac
Connection		Terminal Block 14...22AWG
Temperature	Range	-5...55°C
	Accuracy	±0.3°C@25°C
	Repeatability	±0.1°C
	Response	5~30 Sec., 1/e (63%)
	Output	-	4~20mA (0~50℃: Range Configurable)
Humidity	Range	0~95%RH
	Accuracy	±2.0%RH(30~70%RH), ±3.0%RH(10~90%RH)
	Repeatability	±0.1%RH
	Response	Max. 10sec. : 1/e (63%) at 25°C, 1m/s air
	Output	-	4~20mA
Passive Output		-	-		-
Communication RS485(MODBUS RTU/ASCII)		OK	-	-	OK
Self Diagnostic		Sensor Element Error Detection
Housing		PC-ABS, IP20
Weight		30g
Operation		Temperature -5~55°C / Humidity under 95%RH
Storage		Temperature -25~60℃ / Humidity under 95%RH
