Buồng chịu nhiệt độ cao cho Pyrometer Accurate Sensor Technology Calsys 500BB

0₫

Nhà Sản Xuất Accurate Sensor Technology
Mã Sản Phẩm Calsys 500BB

Mô tả
Bình luận

Buồng chịu nhiệt độ cao cho Pyrometer Accurate Sensor Technology Calsys 500BB

Model: Calsys 500BB

Hãng sản xuất: Accurate Sensor Technology

Thông số kỹ thuật:

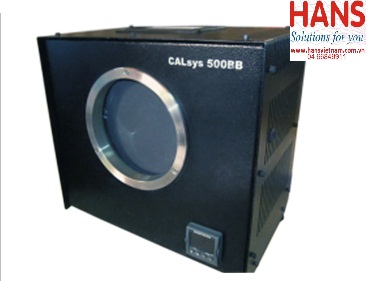

CALSys 500BB calibration source is a highly stable standard Portable Black Body Furnace for calibrating non contact IR thermometer for the wide temperature range of 50 to 500 Deg C.

The unique feature of this Portable Black Body Furnace is large temperature controlled black body target with a diameter of 100 mm which offer large view area for IR Thermometer

The Emissivity of the target is 0.95(±0.01). The temperature of the furnace is set and controlled by a self tuned PID controller with automatic super fine adjustment.

Product Features

Large Aperture Area

Wide Operating Range (50 to 500 Deg C)

High Stability

PC interfacing

Simple to use and cost effective

Portability

Standard Accessories

Reference Standard PRT ………Part No. TPRT-A-300

Carry Case

Optional Accessories

Software for Automated Calibration………Part No.AC-24

Master Pyrometer

Model	HIGH LIGHTS
CALsys 0/110BB Peltier Based 0°C to 110°C	Wide Operating Range (0 to 110°C)
	High Stability
	PC Interfacing
	Simple to use and cost effective
CALsys 500BB (100mm aperture) 50°C to 500°C	Large Aperture Area
	Wide Operating Range (50 to 500°C)
	High Stability
	PC Interfacing
	Simple to use and cost effective
	Portability
CALsys 750BB (100mm Aperture) 200°C to 750°C)	Wide opertaing Range( 200 to 750°C)
	High Stability
	Simple to use and cost effective
	PC interfacing
CALsys 1200BB (300°C to 1200°C)	Wide opertaing Range( 300 to 1200°C)
	High stability
	PC interfacing
	Simple to use and cost effective
	40mm Dia external Aperture
CALsys 1500BB (500°C to 1500°C)	Wide opertaing Range( 500 to 1500°C)
	Use of Silicon Carbide Spiral Rod Heaters
	High Stability
	Simple to use and cost effective
	PC interfacing
	40mm Dia external Aperture
CALsys 1700BB (500°C to 1700°C)	Wide opertaing Range( 500 to 1700°C)
	Use of Molybdenum Disilicide heaters(MoSiO2)
	High Stability
	Simple to use and cost effective
	PC interfacing

Tags: Measuring Instruments
