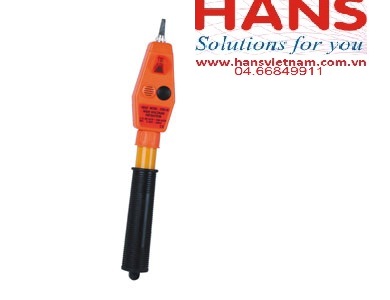

Bút thử điện áp cao SEW 276S HD (3kV ~ 24kV AC)

0₫

Nhà Sản Xuất SEW- Đài Loan
Mã Sản Phẩm 276S HD

Bút thử điện áp cao SEW 276S HD (3kV ~ 24kV AC)

Hãng sản suất: SEW-Đài Loan

Model: 276S HD

Tình trạng hàng: Hàng mới

Thông số kỹ thuật:

Thông số	- Valtage Range: + H.V. : 3kV ~ 24kV AC + L.V. : 80V ~ 600V AC - Frequency: 50Hz / 60Hz - Operation Test: + When stretched, hold the grip portion. Put the sensing tip in contact with the voltage : 250V AC +/- 50V the LED and buzzer should work. + When retracted, hold the nameplate portion. Put the sensing tip in contact with the voltage : 80V AC or below the LED and buzzer should work. - Operation start distance: Distance at which operation starts when front metal is brought near dia. 5mm O.C. wire with grip portion meld by hand. + Where 24kV / dia. 3mm (voltage to ground) ...... abt 20 cm. + Where 6.6kV / dia. 3mm (voltage to ground) ...... abt 3 cm. + Where 3.3kV / dia. 3mm (voltage to ground) ...... abt 1 cm.
Kích thước	255 - 870 mm
Trọng lượng	485g
Nguồn	2 pin LR44 (1,5V)

Bút thử điện áp cao SEW 276S HD (3kV ~ 24kV AC)

Hãng sản suất: SEW-Đài Loan

Model: 276S HD

Tình trạng hàng: Hàng mới

Thông số kỹ thuật:

Thông số	- Valtage Range: + H.V. : 3kV ~ 24kV AC + L.V. : 80V ~ 600V AC - Frequency: 50Hz / 60Hz - Operation Test: + When stretched, hold the grip portion. Put the sensing tip in contact with the voltage : 250V AC +/- 50V the LED and buzzer should work. + When retracted, hold the nameplate portion. Put the sensing tip in contact with the voltage : 80V AC or below the LED and buzzer should work. - Operation start distance: Distance at which operation starts when front metal is brought near dia. 5mm O.C. wire with grip portion meld by hand. + Where 24kV / dia. 3mm (voltage to ground) ...... abt 20 cm. + Where 6.6kV / dia. 3mm (voltage to ground) ...... abt 3 cm. + Where 3.3kV / dia. 3mm (voltage to ground) ...... abt 1 cm.
Kích thước	255 - 870 mm
Trọng lượng	485g
Nguồn	2 pin LR44 (1,5V)
