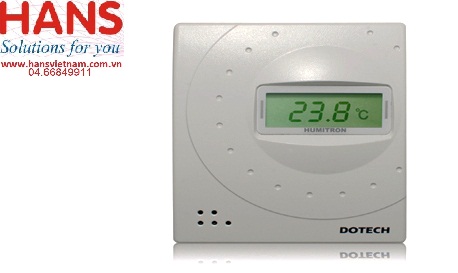

Cảm biến nhiệt độ phòng Dotech HTX10C

0₫

Nhà Sản Xuất Dotech
Mã Sản Phẩm HTX10C

Cảm biến nhiệt độ phòng Dotech HTX10C

Model: HTX10C

Hãng sản xuất: Dotech

Thông số kỹ thuật:

		HTX11C-01 HTX13C-01	HTX11C-10 HTX13C-10	HTX11C-11 HTX13C-11
Dimensions		85(W) X 100(H) X 25(D)mm
Power		9 ~ 32Vdc / 12~24Vac
Connection		Terminal Block, 14 ~ 22AWG
Temperature	Accuracy (HTX11C series)	±0.1℃	±0.1℃	±0.1℃
	Accuracy (HTX13C series)	±0.3℃	±0.3℃	±0.3℃
	Repeatability	±0.1℃	±0.1℃	±0.1℃
	Response	5 ~ 30sec, 1/e(63%)
	Output	4 ~ 20mA(-10 ~ 60℃, 0 ~ 50℃: Configurable)
Self Diagnosis		Sensor Element Error Detection
RS485 Communication (MODBUS RTU/ASCII)		OK	-	OK
Analog Signal Transmission(4-20mA)		-	OK	OK
Housing		PC-ABS
Weight		30g
Operation		Temperature -10~60℃ / Humidity under 95% RH
Storage		Temperature -25~60℃ / Humidity under 95% RH

Cảm biến nhiệt độ phòng Dotech HTX10C

Model: HTX10C

Hãng sản xuất: Dotech

Thông số kỹ thuật:

		HTX11C-01 HTX13C-01	HTX11C-10 HTX13C-10	HTX11C-11 HTX13C-11
Dimensions		85(W) X 100(H) X 25(D)mm
Power		9 ~ 32Vdc / 12~24Vac
Connection		Terminal Block, 14 ~ 22AWG
Temperature	Accuracy (HTX11C series)	±0.1℃	±0.1℃	±0.1℃
	Accuracy (HTX13C series)	±0.3℃	±0.3℃	±0.3℃
	Repeatability	±0.1℃	±0.1℃	±0.1℃
	Response	5 ~ 30sec, 1/e(63%)
	Output	4 ~ 20mA(-10 ~ 60℃, 0 ~ 50℃: Configurable)
Self Diagnosis		Sensor Element Error Detection
RS485 Communication (MODBUS RTU/ASCII)		OK	-	OK
Analog Signal Transmission(4-20mA)		-	OK	OK
Housing		PC-ABS
Weight		30g
Operation		Temperature -10~60℃ / Humidity under 95% RH
Storage		Temperature -25~60℃ / Humidity under 95% RH
