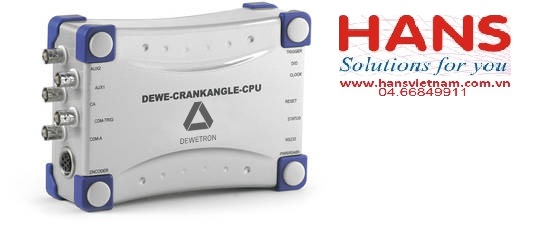

Cảm biến phân tích quá trình đốt DEWETRON CRANKANGLE-CPU

Cảm biến phân tích quá trình đốt DEWETRON CRANKANGLE-CPU

Hãng sản suất: DEWETRON - Áo

Model: CRANKANGLE-CPU

Tình trạng hàng: Hàng mới

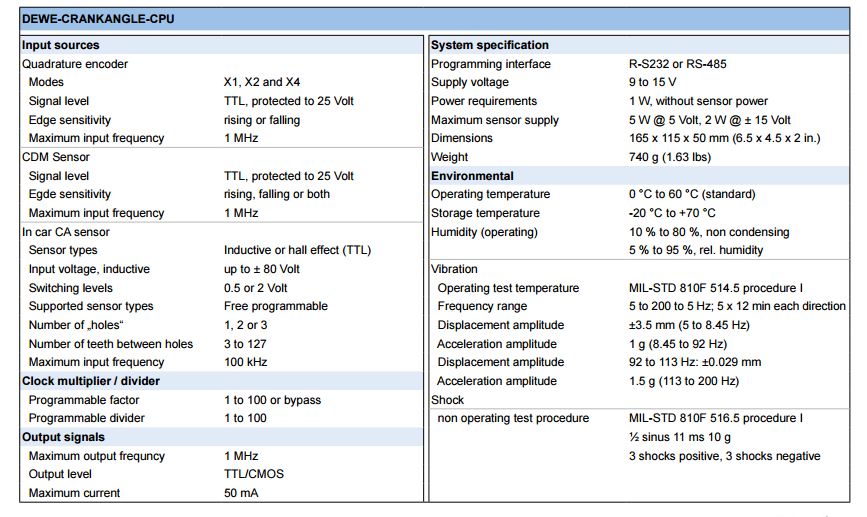

Thông số kỹ thuật:

CRANKANGLE-CPU

• Universal clock conditioner for angle based data acquisition, especially suited for combustion analyzer applications
• Isolated input for crank-angle or encoder sensors
• Quadrature encoder input supports X1, X2 and X4 modes
• Crank-angle input is free programmable - number of teeth and holes (i.e. 60-2 encoder)
• Crank-angle input supports pickup sensors or TTL signals
• Absolute long time stable

FOR COMBUSTION ANALYZER APPLICATIONS

The Crankangle-CPU offers a universal clock multiplier suited especially for combustion analyzer applications where angle synchronous data acquisition is needed.

A wide range of angle sensors is supported:

• Quadrature encoder (X1, X2 or X4)
• Pulses + trigger (CDM)
• Car´s built-in crank-angle sensor with up to 3 gaps; e.g. 60-2-2-2
• Car´s built-in crank-angle sensor with double teeth ; e.g. 36+1
