Cảm biến trọng lượng Sewhacnm SB210

0₫

Nhà Sản Xuất Sewhacnm
Mã Sản Phẩm SB210

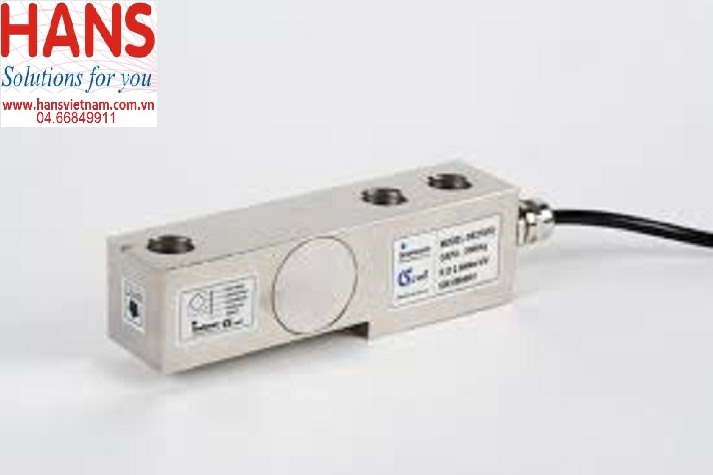

Cảm biến trọng lượng Sewhacnm SB210

Model: SB210

Hãng sản xuất: Sewhacnm

Thông số kỹ thuật:

Low Cost

Compact Design

Compression type

Protection Class IP66

Mateiral : Nickel Plated Steel

Braided Shield 4-Wire Round Cable

Specification

Rated Capacity (R.C.)	kgf/tf	150,200,250,300,500kgf
Rated Capacity (R.C.)	kgf/tf	1,2,3,5,10tf
Rated Output (R.O.)	mV/V	2.0 ± 0.005
Zero Balance	mV/V	0 ± 0.02
Combined Error	%	0.03
Repeatability	%	0.01
Creep (30 min)	%	0.03
Temperature effect on
Zero Value	% / 10℃	0.03
Output Value	% / 10℃	0.02
Excitation
Recommended	V	10
Maximum	V	15
Resistance
Input	Ω	400±30
Output	Ω	350±3.5
Insulation	MΩ	>2,000
Compensated temperature range	℃	-10 ~ +40
Operating temperature range	℃	-30 ~ +80
