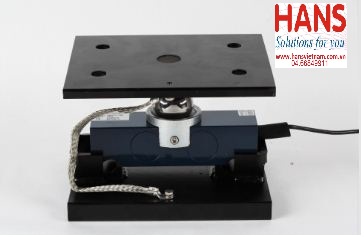

Cảm biến trọng lượng Sewhacnm SB910

0₫

Nhà Sản Xuất Sewhacnm
Mã Sản Phẩm SB910

Cảm biến trọng lượng Sewhacnm SB910

Model: SB910

Hãng sản xuất: Sewhacnm

Thông số kỹ thuật:

Robust Design and Easy Installation
Strong Against Shock or side force
Protection Class IP67
Material : Paint Finished Steel
Braided Shield 4-Wire Round Cable with PVC-Jacket
Specification
Rated Capacity (R.C.)	kgf/tf	10,15,25tf
Rated Capacity (R.C.)	kgf/tf	10,15,25tf
Rated Output (R.O.)	mV/V	3.0 ± 0.006
Zero Balance	mV/V	0 ± 0.03
Combined Error	%	0.03
Repeatability	%	0.02
Creep (30 min)	%	0.03
Temperature effect on
Zero Value	% / 10℃	0.03
Output Value	% / 10℃	0.015
Excitation
Recommended	V	10
Maximum	V	15
Resistance
Input	Ω	800±40
Output	Ω	700±7
Insulation	MΩ	>2,000
Compensated temperature range	℃	-10 ~ +40
Operating temperature range	℃	-20 ~ +80

Cảm biến trọng lượng Sewhacnm SB910

Model: SB910

Hãng sản xuất: Sewhacnm

Thông số kỹ thuật:

Robust Design and Easy Installation
Strong Against Shock or side force
Protection Class IP67
Material : Paint Finished Steel
Braided Shield 4-Wire Round Cable with PVC-Jacket
Specification
Rated Capacity (R.C.)	kgf/tf	10,15,25tf
Rated Capacity (R.C.)	kgf/tf	10,15,25tf
Rated Output (R.O.)	mV/V	3.0 ± 0.006
Zero Balance	mV/V	0 ± 0.03
Combined Error	%	0.03
Repeatability	%	0.02
Creep (30 min)	%	0.03
Temperature effect on
Zero Value	% / 10℃	0.03
Output Value	% / 10℃	0.015
Excitation
Recommended	V	10
Maximum	V	15
Resistance
Input	Ω	800±40
Output	Ω	700±7
Insulation	MΩ	>2,000
Compensated temperature range	℃	-10 ~ +40
Operating temperature range	℃	-20 ~ +80
