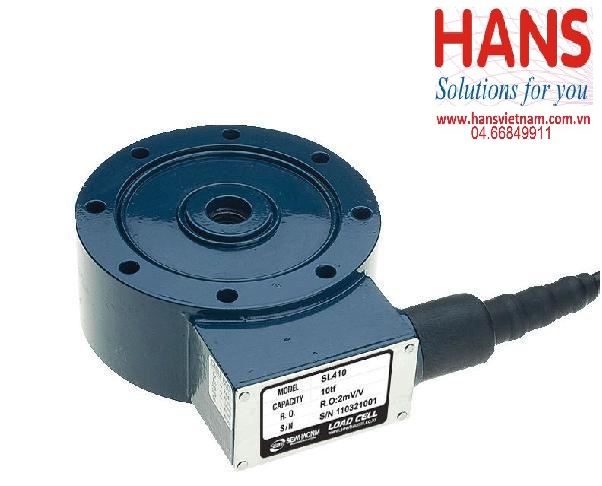

Cảm biến trọng lượng Sewhacnm SL410

0₫

Nhà Sản Xuất Sewhacnm
Mã Sản Phẩm SL410

Cảm biến trọng lượng Sewhacnm SL410

Model: SL410

Hãng sản xuất: Sewhacnm

Thông số kỹ thuật:

Hermetically Sealed
High Reliability Against Fatigue & Force
Fully Environmental Protection IP67
Mateiral : Paint Finished Steel
Braided Shield 4-Wire Round Cable with PVC-Jacket
Explosion Proof type - Ex nA IIB-T4
Specification
Rated Capacity (R.C.)	kgf/tf	1,2,3,5,10,20,30,50,100,200tf

Rated Output (R.O.)	mV/V	2.0 ± 0.005
Zero Balance	mV/V	0 ± 0.02
Accuracy Class		A	B
Combined Error	%	0.02	0.05
Repeatability	%	0.01	0.02
Creep (30 min)	%	0.03	0.03
Temperature effect on
Zero Value	% / 10℃	0.03	0.03
Output Value	% / 10℃	0.03	0.03
Excitation
Recommended	V	10
Maximum	V	15
Resistance
Input	Ω	350±3.5
Output	Ω	350±3.5
Insulation	MΩ	>2,000
Compensated temperature range	℃	-10 ~ +40
Operating temperature range	℃	-30 ~ +80

Cảm biến trọng lượng Sewhacnm SL410

Model: SL410

Hãng sản xuất: Sewhacnm

Thông số kỹ thuật:

Hermetically Sealed
High Reliability Against Fatigue & Force
Fully Environmental Protection IP67
Mateiral : Paint Finished Steel
Braided Shield 4-Wire Round Cable with PVC-Jacket
Explosion Proof type - Ex nA IIB-T4
Specification
Rated Capacity (R.C.)	kgf/tf	1,2,3,5,10,20,30,50,100,200tf

Rated Output (R.O.)	mV/V	2.0 ± 0.005
Zero Balance	mV/V	0 ± 0.02
Accuracy Class		A	B
Combined Error	%	0.02	0.05
Repeatability	%	0.01	0.02
Creep (30 min)	%	0.03	0.03
Temperature effect on
Zero Value	% / 10℃	0.03	0.03
Output Value	% / 10℃	0.03	0.03
Excitation
Recommended	V	10
Maximum	V	15
Resistance
Input	Ω	350±3.5
Output	Ω	350±3.5
Insulation	MΩ	>2,000
Compensated temperature range	℃	-10 ~ +40
Operating temperature range	℃	-30 ~ +80
