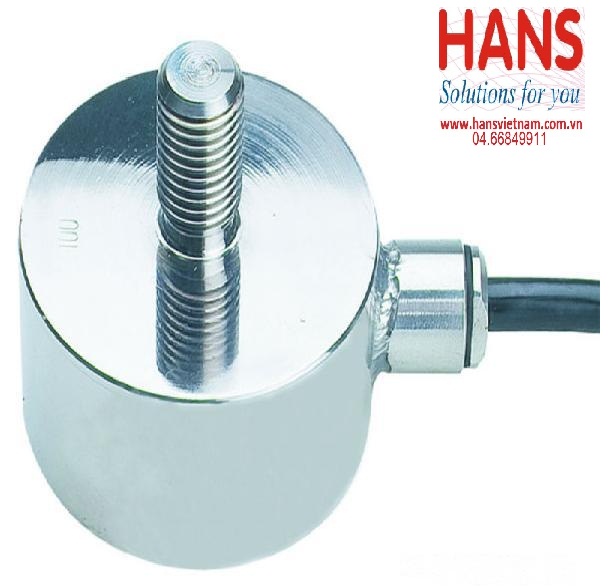

Cảm biến trọng lượng Sewhacnm SM603E

0₫

Nhà Sản Xuất Sewhacnm
Mã Sản Phẩm SM603E

Cảm biến trọng lượng Sewhacnm SM603E

Model: SM603E

Hãng sản xuất: Sewhacnm

Miniature Demension
Tension type
Application for limited space
Protection class IP67
Mateiral : Stainless Steel
Braided Shield 4-Wire Round Cable
Specification
Rated Capacity (R.C.)	kgf/tf	50, 100, 200, 500 kgf
Rated Capacity (R.C.)	kgf/tf
Rated Output (R.O.)	mV/V	2.0 ± 0.02
Zero Balance	mV/V	0.0 ± 0.1
Combined Error	%	0.15
Repeatability	%	0.05
Creep (30 min)	%	0.03
Temperature effect on
Zero Value	% / 10℃	0.05
Output Value	% / 10℃	0.10
Excitation
Recommended	V	10
Maximum	V	15
Resistance
Input	Ω	420±50
Output	Ω	350±3.5
Insulation	MΩ	>2,000@50V DC
Compensated temperature range	℃	-10 ~ +40
Operating temperature range	℃	-20 ~ +80

Cảm biến trọng lượng Sewhacnm SM603E

Model: SM603E

Hãng sản xuất: Sewhacnm

Miniature Demension
Tension type
Application for limited space
Protection class IP67
Mateiral : Stainless Steel
Braided Shield 4-Wire Round Cable
Specification
Rated Capacity (R.C.)	kgf/tf	50, 100, 200, 500 kgf
Rated Capacity (R.C.)	kgf/tf
Rated Output (R.O.)	mV/V	2.0 ± 0.02
Zero Balance	mV/V	0.0 ± 0.1
Combined Error	%	0.15
Repeatability	%	0.05
Creep (30 min)	%	0.03
Temperature effect on
Zero Value	% / 10℃	0.05
Output Value	% / 10℃	0.10
Excitation
Recommended	V	10
Maximum	V	15
Resistance
Input	Ω	420±50
Output	Ω	350±3.5
Insulation	MΩ	>2,000@50V DC
Compensated temperature range	℃	-10 ~ +40
Operating temperature range	℃	-20 ~ +80
