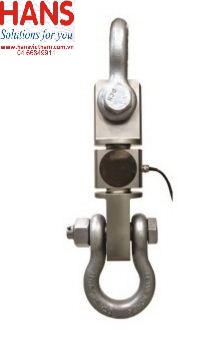

Cảm biến trọng lượng Sewhacnm ST800E

0₫

Nhà Sản Xuất Sewhacnm
Mã Sản Phẩm ST800E

Cảm biến trọng lượng Sewhacnm ST800E

Model: ST800E

Hãng sản xuất: Sewhacnm

Thông số kỹ thuật:

Tension type
Convenient assembly of shackle and loadcell
Measurement for every industrial temsile load
Specification
Rated Capacity (R.C.)	kgf/tf	10,20,30,50tf
Rated Capacity (R.C.)	kgf/tf	10,20,30,50tf
Rated Output (R.O.)	mV/V	2.0 Nominal
Zero Balance	mV/V	0 ± 0.2
Combined Error	%	0.03
Repeatability	%	0.02
Creep (30 min)	%	0.03
Temperature effect on
Zero Value	% / 10℃	0.03
Output Value	% / 10℃	0.03
Excitation
Recommended	V	10
Maximum	V	15
Resistance
Input	Ω	760±40
Output	Ω	700±7
Insulation	MΩ	>2,000
Compensated temperature range	℃	-10 ~ +40
Operating temperature range	℃	-20 ~ +80
