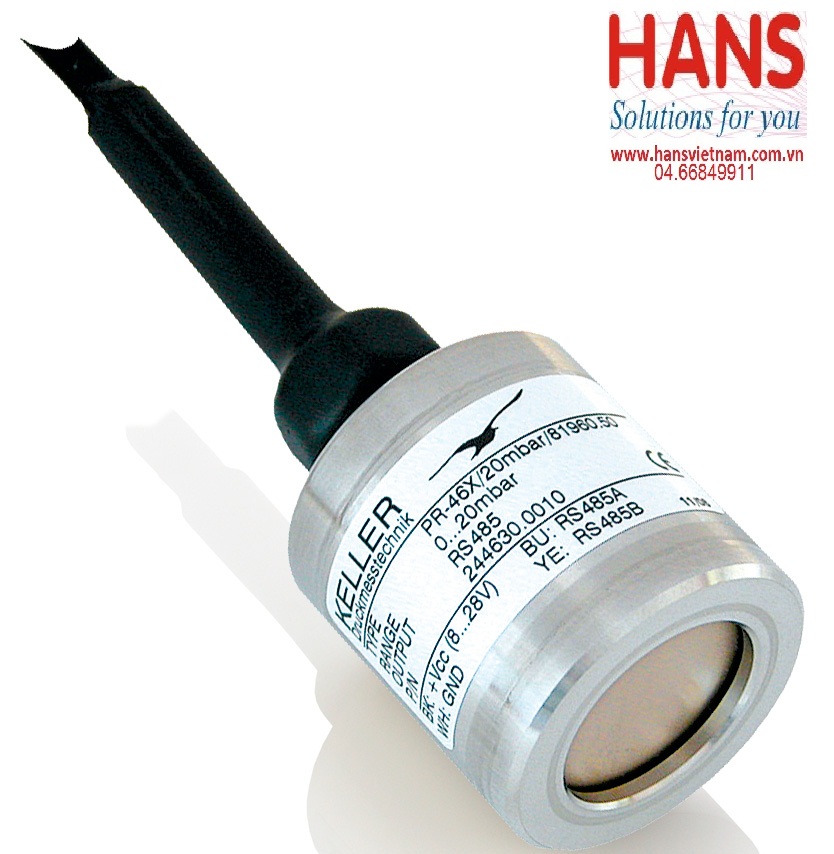

Capacitive transmitters Keller Series 46X, 46X Ei

Capacitive transmitters Keller Series 46X, 46X Ei

Model: Series 46X, 46X Ei

Hãng sản xuất: Keller

Thông số kỹ thuật:

The Series 46 X combines the ceramic measuring cell for low pressure ranges with the µP-electronics of the digital Series 30 pressure transmitters. The signal values of the pressure- and temperature sensors are determined by a polynomial compensation. The values can be shown and stored on a PC and can be reprogrammed. A reference tube integrated in the cable connects the referential chamber of the sensor with the ambient pressure.

This pressure transmitter is also available as intrinsically safe version (Series 46 X Ei). It is used in explosion exposed areas, where the categories 1 and 2 are required.

Pressure ranges: 30 mbar / 100 mbar / 300 mbar (rel.)

Output: 4...20 mA; 0...10 V

Error Band 10…50 °C: 0,1 %FS typ. / 0,2 %FS max.
