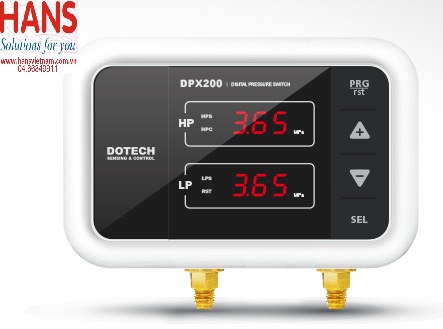

Công tắc chênh áp Dotech DPX200

0₫

Nhà Sản Xuất Dotech
Mã Sản Phẩm DPX200

Công tắc chênh áp Dotech DPX200

Model: DPX200

Hãng sản xuất: Dotech

Thông số kỹ thuật:

		DPX200-HL-00	DPX200-HL-R4
Dimensions		159(W) x 128(H) x 58(D) mm
Power		100-240 Vac, 50/60 Hz
Power Consumption		Max. 10 VA
I/O		3P Relay Output / 250 Vac, 30 Vdc, 5 A / HPS, LPS, HPC
Connection		Screw Terminal
Display		FND, LED Type
Mount		Bracket
Pressure Sensor	Measurement Range	Low Pressure: -0.10~1.50MPa High Pressure: 0~5.00MPa
	Accuracy	±1.0 %
	Overpressure	200%
	Stability	±0.5 %FS/year
	Shock	20 g Sinusoidal, 11 msec
	Vibration	x-y-z directions of 5 -2000 Hz/10 g
	Fluid Temperature	-40 ~ 120°C
	Port	7/16UNF / MALE
	Pressur Type	Gauge
Communication		-	RS485 MODBUS RTU
Operation		-10~50 ℃(Humidity 90 %RH or Less)
Storage		-20~60 ℃(Humidity 90 %RH or Less)

Công tắc chênh áp Dotech DPX200

Model: DPX200

Hãng sản xuất: Dotech

Thông số kỹ thuật:

		DPX200-HL-00	DPX200-HL-R4
Dimensions		159(W) x 128(H) x 58(D) mm
Power		100-240 Vac, 50/60 Hz
Power Consumption		Max. 10 VA
I/O		3P Relay Output / 250 Vac, 30 Vdc, 5 A / HPS, LPS, HPC
Connection		Screw Terminal
Display		FND, LED Type
Mount		Bracket
Pressure Sensor	Measurement Range	Low Pressure: -0.10~1.50MPa High Pressure: 0~5.00MPa
	Accuracy	±1.0 %
	Overpressure	200%
	Stability	±0.5 %FS/year
	Shock	20 g Sinusoidal, 11 msec
	Vibration	x-y-z directions of 5 -2000 Hz/10 g
	Fluid Temperature	-40 ~ 120°C
	Port	7/16UNF / MALE
	Pressur Type	Gauge
Communication		-	RS485 MODBUS RTU
Operation		-10~50 ℃(Humidity 90 %RH or Less)
Storage		-20~60 ℃(Humidity 90 %RH or Less)
