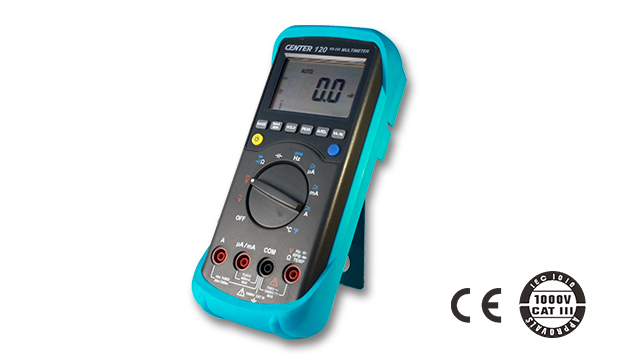

ĐỒNG HỒ ĐO ĐIỆN VẠN NĂNG CENTER 120

0₫

Nhà Sản Xuất CENTER-TAIWAN
Mã Sản Phẩm CENTER 120

HANS VIỆT NAM CHUYÊN CUNG CẤP ĐỒNG HỒ ĐO ĐIỆN VẠN NĂNG CENTER 120 TẠI VIỆT NAM.

THÔNG SỐ KỸ THUẬT

LED Back Light system for operation under poor illumination

• Shock absorbing holster adds an extra protection and provides a built-in tilt stan

• 1ms Peak(Max/Min) Function

Function	Range	Resolution	Accuracy
DCV	400mV~1000V	0.1mV~1V	±0.3%rdg+2dgts
ACV	400mV~750V	0.1mV~1V	±0.5%rdg+5dgts
DCA	400uA~20A	0.1uA~0.01A	±0.8%rdg+2dgts
ACA	400uA~20A	0.1uA~0.01A	±1%rdg+5dgts
Ohms	400Ω~40MΩ	0.1Ω~10KΩ	±0.3%rdg+2dgts
–>\|–	4nF~40mF	1pF~10pF	±1.9%rdg+20dgts
Hz(VA-HZ)	4KHZ~40MHz	1Hz~10KHz	±0.05%rdg+1dgt
RPM	40K~400MRPM	0.01k~100KRPM	±0.05%rdg+1dgt
TEMP	-50~1000℃ -58~1832℉	1℃ 1℉	1%rdg+2℃ 1%rdg+4℉
–►\|–	0~2V
•)))_Active Sound Level	≦ 40Ω

Sampling Rate: 2 times/sec(digital reading); 20 times/sec(analog bar indication)

Battery: 9V battery

Dimensions(with holster): 209x94x48 mm

Weight(with holster): 600g
