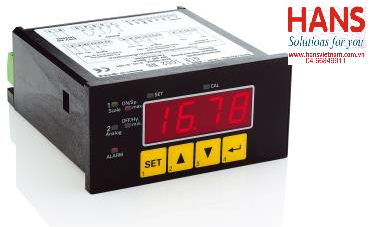

Digital Indicator and controller Keller EV-06

Digital Indicator and controller Keller EV-06

Model: EV-06

Hãng sản xuất: Keller

Thông số kỹ thuật:

Universally applicable for measurement display, controlling, monitoring and counting. The new digital indicator EV-06 is even more precise, faster, more reliable and equipped with additional inputs. The vast self-monitoring and self-diagnosis system ensures high operation security. The high precision, operating mode diversity, competitive price and ease of use results in the EV-06 being a valuable investment.

6 standard signals, EasyBus (up to 240 instruments), power suppy for sensor (24 V, 20 mA), Interface EasyBus, 2 switching outputs (5 A/10 A), PT100 (3-wire), PT1000 (2-wire), min.-/max.-value memory, thermo-elements J/K/N/S/T, scale fully adjustable, measuring of frequency, filter digital, measuring of rotation speed, alarm delay, counter with prescaler, self monitoring- and self-diagnosis system, easy to use, top quality and competitively priced, fast controlling and monitoring. For detailed specifications see operation manual

Supply: 230V AC

Input: 0...1 V; 0...10 V; 4...20 mA; 0...20 mA

Display: 9999

Housing: 48 x 96 x 119 mm

Tags: Measuring Instruments
