Digital Manometer Keller ECO1, EECO1 Ei

Digital Manometer Keller ECO1, EECO1 Ei

Model: ECO1, EECO1 Ei

Hãng sản xuất: Keller

Thông số kỹ thuật:

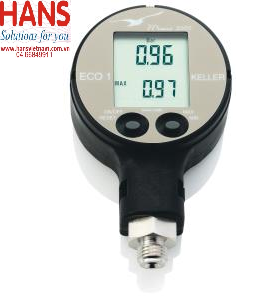

ECO 1 is a compact and economic digital pressure measuring instrument based on a mask programmed OKI-micro-processor. It is of medium accuracy, but of high resolution and repeatability.

The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the MAX.- or MIN- pressure since the last RESET.

ECO 1 has two operating keys. The left key is to turn the instrument on and to execute its functions (the functions appear successively on the display as long as the key is pressed and are executed when releasing the key). The right key is also used to switch between the MAX.- and MIN.-value.

Also available as intrinsically safe version (ECO 1 Ei)

Pressure Ranges: -1...30 bar; 0...300 bar

Accuracy: 0,5 %FS typ

Storage- / Operating Temperature: -20...70 °C / 0...50 °C

Protection: IP65
