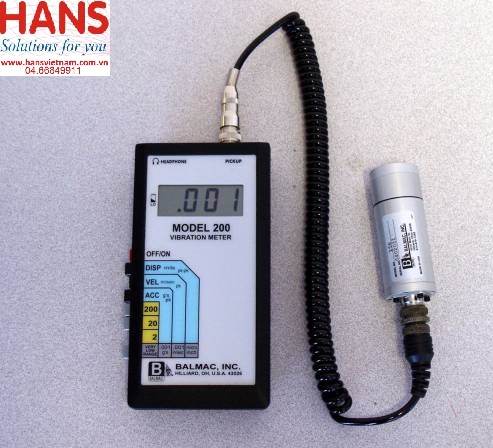

Digital Vibration Meters Balmac 200

Digital Vibration Meters Balmac 200

Model: 200

Hãng sản xuất: Balmac

Thông số kỹ thuật:

Model 200 measures overall vibration amplitude in English units in the range of 180 to 200,000 RPMs on rotating machinery. Applications include checking vibration conditions on bearings, motors, fans and pumps

Displacement: 0.001 to 199 mils (peak-peak)
Velocity: 0.001 to 199 in/sec (peak)
Acceleration: 0.001 to 199 g’s (peak)
Very Low Range reads directly in:
Displacement: micro inches = .001 mils (peak-peak)
Velocity: inches = .001 in/sec (peak)
Acceleration: .001 g’s = milli g’s (peak)
Range: 4 selectable Ranges with over-range indication usable for each range
High 200 = 20.0 to 199.9
Medium 20 = 2.00 to 19.99
Low 2 = .020 to 1.999
Very Low Range = 20.0 to 199.9
Sensitivity:
Displacement: 0.000001 inch (0.001 mil) (1 micro-inch)
Velocity: 0.001 inch/sec
Acceleration: 0.001g
