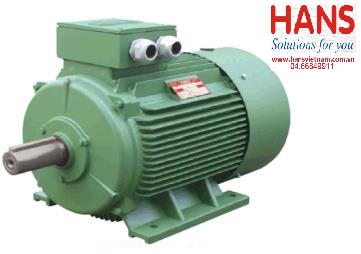

Động cơ Fimet IE2 Serie allum

Động cơ Fimet IE2 Serie allum

Model: IE2 Serie allum

Hãng sản xuất: Fimet

Thông số kỹ thuật:

The three-phase high efficiency motors IE2 motors 3EMA series, closed,externally fan cooled, manufactured according to the main internationalstandards and particularly to the IEC 34 and 72 rules , are availablein the sizes from 63 up to 132 , with pole number 2, 4,6 and with output power from 0,75 kW up to 11 kW.They are featured by aluminium die-cast frame with removable feet, by the IP55 protection level, by the F class insulation and by shielded type for lifelubricated bearings.
The three-phase high efficiency motors IE2 motors 1EM-1 series, closed,externally fan cooled, manufactured according to the main internationalstandards and particularly to the IEC 34 and 72 rules , are availablein the sizes from 160 up to 355 , with pole number 2, 4,6 and with outputpower from 4 kW up to 315 kW.They are featured by cast iron frame with fixed feet, by the IP 55protection level, by the F class insulation, by bearings equipped withgreasing facilities ( apart from the 160 size where for life lubricatedbearings are foreseen ) and by PTC type thermoprotectors on windings

Tags: Motor
