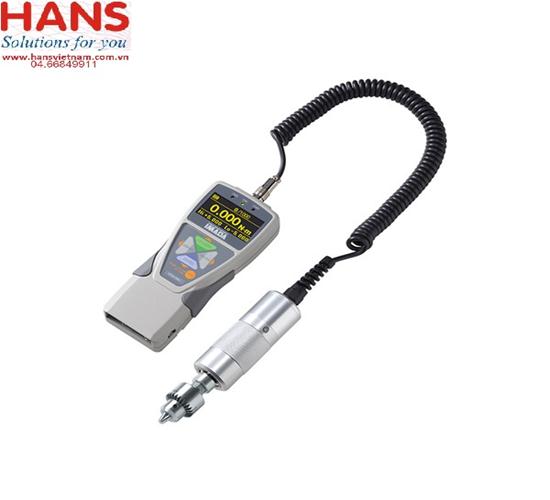

Đồng hồ đo lực xoắn cầm tay Imada model HTGS/ HTGA

Outline

Advanced model with various functions such as data saving in USB memory stick, angle(displacement) I/O and more

Standard model

Accuracy

±0.5%F.S.±1digit

Unit of measurement (*1)

N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in (N-cm, kgf-cm, lbf-in and ozf-in are available for 0.5N-m.)

Display

4-digit Organic EL

Display update

16 / sec

Sampling rate

2000 data / sec at maximum (*2)

Battery

Nickel-hydrogen battery / Operating time:8 hours (2hours full charge) (*3)

Safe overload rating

Approx.200%F.S.

Operating environment

Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH

Function

 Customized display (header and footer), Peak hold (clockwise and counter-clockwise), Internal 1000 points data memory,
Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer,
+NG alarm, Off timer (auto power off), Dumping, Time display, setting lock

1st/2nd peak,Angle detection at torque peak value (*4), Angle zero reset at selected torque(*4)

-

Output

USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A),Comparator 3 steps (-NG/OK/+NG), Overload alarm

Sub comparator 2 steps (output of large or small judgment), USB flash drive, Angle(displacement) (*4)

-

Overload warning

Approx.110%F.S. (Warning message and alarm )

External connecting switch

SEND (a point of contact holding), Zero reset, Peak ON/OFF setting

Weight

Display : approx.490g

Dimensions

Please refer to dimensions.

Accessory

AC adapter, Inspection certificate, CD driver (including simple software for data logging),
Force Recorder Professional (Graphing software for demo), USB cable, Carrying case, L wrench, handles (10N-m range only)

USB flash drive adapter（*6）

-
