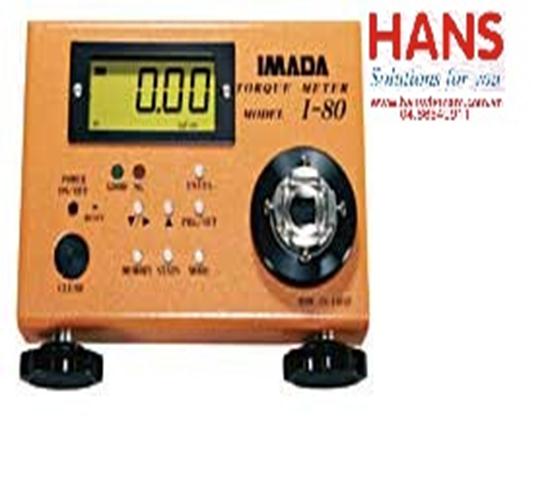

Đồng hồ đo lực xoắn Imada I-8/ I-80

Measuring range*1

0.20~78.60 cN-m

0.020~7.860 N-m

0.020~8.000 kgf-cm

0.20~80.00 kgf-cm

0.020~6.970 lbf-in

0.20~69.70 N-m

-

2.0~786.0 cN-m

Accuracy

+/- 0.5% (reading value) or +/-3digit in less than 499 digit.

Display

4 digits LCD display

Measuring direction

CW-CCW (Right turn /Left turn)

Measuring mode

P-P(Peak-hold), T-R(Track), P-D(Peak-down),C(real time data output)

Upper/Lower value setting

Upper/ Lower value are able to be set in the measuring range.

Pass-fail decision

Pass/Fail can be check in the measuring range.(P-P mode)

GOOD (Pass)…Green lights, NG( Fail)…Red blinks

Max./ Min./Ave. display

Display stored Max. / Min. /Ave. / Number of measuring values.

Real time data output

Output applied torque approx. 1/180 sec each.

Internal memory

800 data

Output data

ASCII (baud rate 19200 bps)

Auto zero reset function

Automatic clear value function in each 0.1~3.0 sec (The setting is possible from 0.5 sec each). Manual zero reset setting is at 0.0 sec.

Zero Reset function

Auto or Manual (only pressing the button.)

Battery

Ni-Cd 1.2v×5 cell(700mAh) 300 times

Auto power-off

Auto power-off in 10 minutes with no operation.

Charging time/ Usable time

Approx.3 hours/ Approx. 12 hours continuous use after full charge.

Socket joint part (Detecting parts shape)

Square 20 mm / Square 9.5 mm

Included items (1 each)

Driver adapter OW-025/OW-10

Driver adapter OW-20/OW-60

Attaché case, battery charger, inspection certificate (*2), calibration certification (*2), traceability system diagram(*2).
