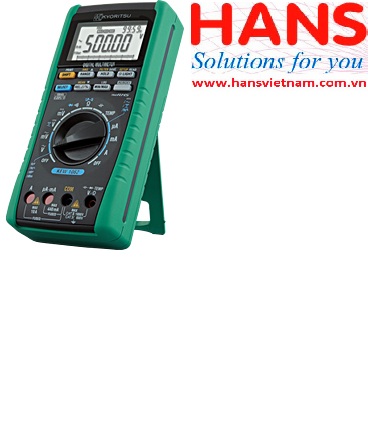

Đồng hồ vạn năng Kyoritsu 1061(10A/1000V)

1061

AC V [RMS]

500.00mV/5.0000/50.000/500.00/1000.0V

±0.7%

DC V

50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V

±0.02%

DCV+ACV

5.0000/50.000/500.00/1000.0V

±1%

DC A

500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A

±0.2%

AC A[RMS]

500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A

±1%

DC A+ AC A

500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A

±1.5%

Ω

500.00Ω/5.0000/50.000/500.00kΩ/5.0000/50.000MΩ

±0.1%

Kiểm tra thông mạch

500.0Ω

Kiểm tra Diode

2,4V /±1%

Tụ

5.000/50.00/500.0nF/5.000/50.00/500.0µF/5.000/50.00mF

±1%

Tần số

2.000 - 9.999/9.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz

±1%

Nhiệt độ

-200 - 1372ºC|±1%

Chức năng

Data Hold (D/H), Auto Hold (A/H), Peak Hold * (P/H), Range Hold (R/H), Maximum value (MAX), Minimum value (MIN), Average value (AVG), Zero Adjustment (Capacitor, Resistance), Relative values, Save to Memory, LCD backlight

Nguồn

R6P (1.5V)×4

Kích thước

192(L)×90(W)×49(D) mm

Khối lượng

560g

Phụ kiện kèm theo

Vỏ, Pin, HDSD
