Erichsen 322

Hans Việt Nam chuyên cung cấp Erichsen 322

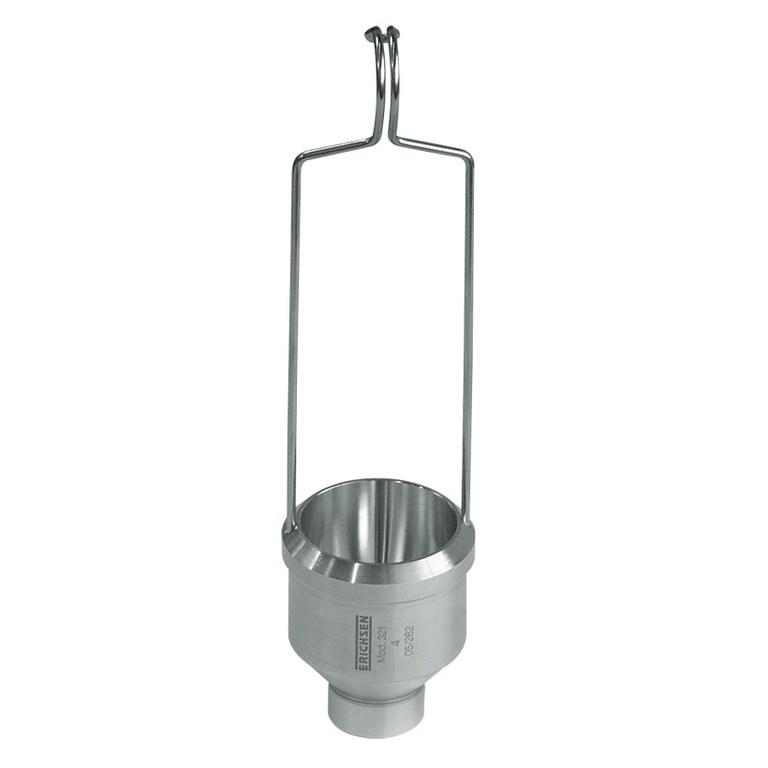

#321 type (DIN immersion viscosity cup, technically in line with DIN 53 211 standard)
order number nozzle diameter viscosity range * material
0062.01.31 2mm 10-50 mm ² /s aluminum alloy
0062.05.31 3mm 30-300 mm ² / s
0062.02.31 4mm 50-800 mm ² /s
0062.03.31 6mm 300-1500 mm ² /s
0062.04.31 8mm 500-5000 mm ² /s
＊The flow time range is 20-200s

#322 type (ISO immersion viscosity cup, technically in accordance with EN ISO 2431 standard)
order number nozzle diameter viscosity range * Material
0062.01.31 2mm 10-40 mm ² /s Alumina
0062.02.31 4mm 35-135 mm ² / s
0062.03.31 5mm 90—330 mm ² /s
0062.04.31 6mm 190—680 mm ² /s
＊The flow time range is 30—100s

#343 type (Zahn immersion viscosity cup, in line with ASTMD4212 standard)
order number nozzle diameter viscosity range * material
0049.01.32 No. 1 (0.078") 5-60 mm ² /s aluminum alloy
0049.02.32 No. 2 (0.108 ") 20—250 mm ² /s
0049.03.32 No. 3 (0.148") 100—800 mm ² /s
0049.04.32 No. 4 (0.168") 200—1200 mm ² /s
0049.05.32 No. 5 ( 0.207") 400—1800 mm ² /s

＊The flow time range is 20-80s

0030.01.31 A set of 5 replaceable cups and a handle, packed in a box.

Quý khách có nhu cầu về Erichsen 322 vui lòng liên hệ Hans để biết thêm chi tiết.
