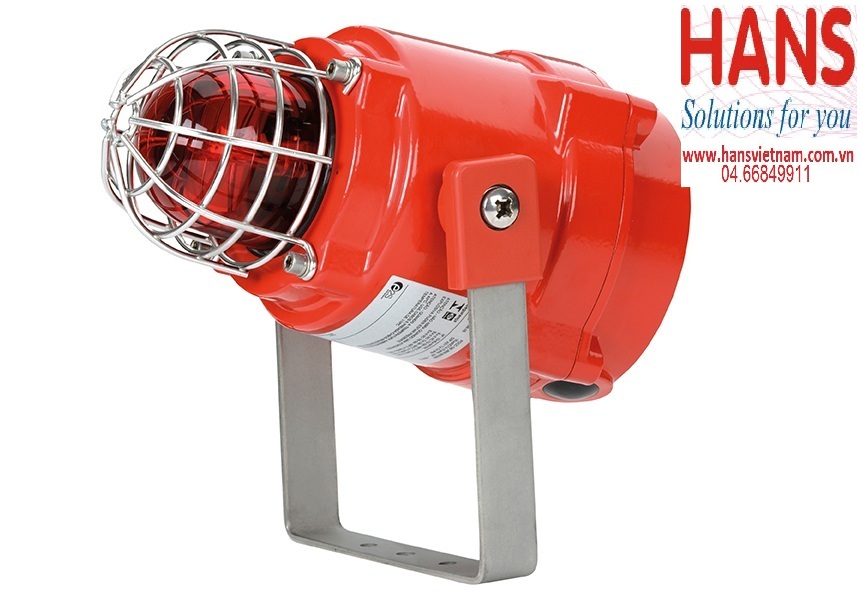

Explosion proof beacon Gastron BExBG05

Energy:

5 Joules (5Ws)

Flash rate:

1Hz (60 fpm)

Peak Candela:

500,000 cd - calculated from energy (J)

Effective Intensity cd:

250 cd - calculated from energy (J)

Peak Candela:

34,812 cd* - measured ref. to I.E.S.

Effective Intensity cd:

105 cd* - measured ref. to I.E.S.

Lens colours:

Amber, Blue, Clear, Green, Red & Yellow

Voltages DC:

12vdc; 24vdc; 48vdc

Voltages AC:

115vac; 230vac

Ingress protection:

BG05D : IP66/67

Housing material:

Marine grade copper free, LM6 Aluminium

Housing finish:

Phosphated & powder coated finish - anti-corrosion.

Colour:

RAL3000 Red(others available on request)

Cable entries:

Dual M20 ISO (one stopping plug inc)

Terminals:

0.5 to 4.0mm² cables.

Line monitoring :

Min. 500 Ohm 2w, or 3k3 Ohm / 0.5w res. or diode within Exd enclosure (dc versions).

Tube life :

Emissions are reduced to 70% after 8 million flashes

Weight :

DC: 2.45kg/5.39Ibs AC: 2.75kg/6.05Ibs
