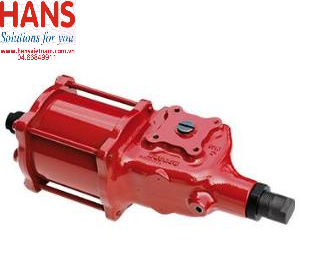

Fluid Power Actuator Rotork CP

Fluid Power Actuator Rotork CP

Model: CP

Hãng sản xuất: Rotork

Thông số kỹ thuật:

CP range pneumatic actuators are a versatile, modular, scotch yoke design available in both double-acting and spring-return configurations. The compact and efficient design yields high torques even at low pressures. The design concepts found in Rotork's large, heavy-duty actuators has been applied to the CP range, which brings heavy-duty actuator qualities to small, quarter-turn actuators.

The actuator body is of rugged, ductile cast iron available in four body sizes. Cylinders are manufactured from carbon steel, electroless nickel-plated.

Pneumatic actuators in double-acting and spring-return configurations

Corrosion resistant cylinders

Actuators certified to IP 66M/67M

Actuators certified to ATEX 94/9/EC

Actuators certified in accordance with PED 93/27/EC

Torque output to 4,500 Nm (39,800 lbf-in)
