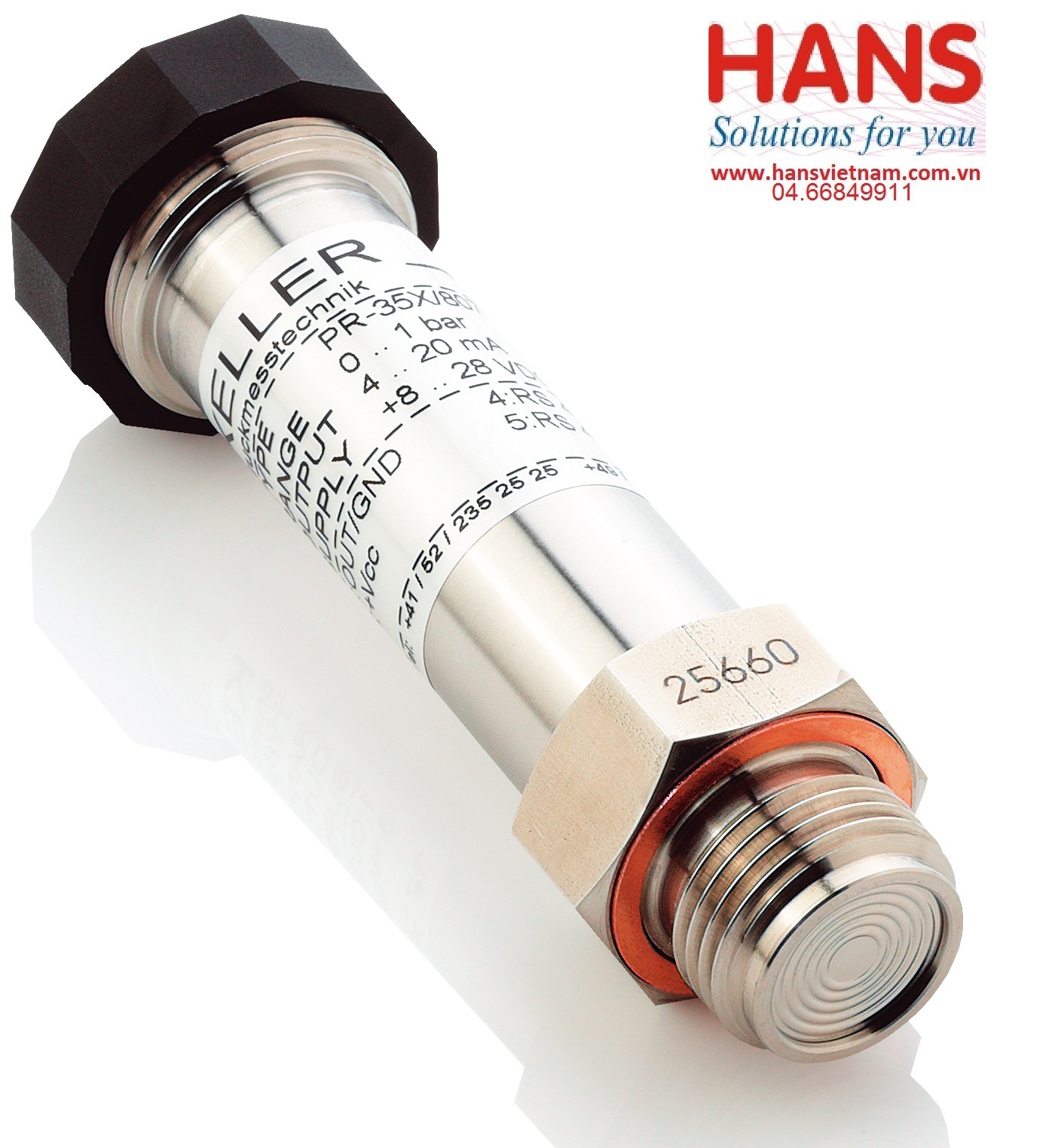

Highly precise pressure transmitters Keller Series 33X Ei, 35X Ei, 36XW Ei, PD-33X Ei

Highly precise pressure transmitters Keller Series 33X Ei, 35X Ei, 36XW Ei, PD-33X Ei

Model: Series 33X Ei, 35X Ei, 36XW Ei, PD-33X Ei

Hãng sản xuất: Keller

Thông số kỹ thuật:

These piezoresistive pressure transmitters are approved for use in hazardous areas of group II where there is a high risk of explosion.

Signal processing:
This series features microcontroller-based electronic evaluation to ensure maximum accuracy. Each transmitter is gauged across the entire pressure and temperature range. This measurement data is used to calculate a mathematical model that enables correction of all reproducible errors. In this way, KELLER can guarantee high accuracy as an error band within the overall compensated pressure and temperature range. Two compensated temperature ranges are available for industrial transmitters, according to choice: -10…80 °C and 10…40 °C. The level probes are gauged in the 0…50 °C temperature range only. The calculated pressure value can be read via the interface, and is simultaneously processed as an analog signal.

Interface:
The interface is designed as a robust RS485 half-duplex for 9'600 and 115'200 baud. It can be used to implement bus systems with 128 subscribers and line lengths of up to 1400 m. There is an external leadthrough for the interface on all products except the version with the DIN 43650 plug.

Options:
Low Voltage Version labelled with “LV” in Type Designation
Mining Version labelled with “M” in Type Designation

Pressure ranges: 1...1000 bar

Output: RS 485; 4...20 mA, 2 wire; 0...10 V, 3 wire

Stability, Range > 1 bar: 0,1 %FS

Stability, Range < 1 bar: 1 mbar
