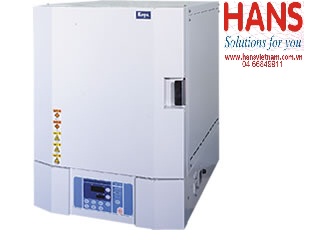

Lò nung Koyo Thermo KBF

Type

KBF748N1

KBF794N1

KBF728N1

Max. operation Temperature
(*1)

1150°C

Normal operation Temperature
(*1)

400~1100°C

Control System

Temperature Controller

Heater Power

1.2kW(at 100V)

3.0kW(at 200V)

4.6kW(at 200V)

TC

Platinel-II

Outer dimension (mm)

345(W)×535(H)×525(D)

470(W)×675(H)×650(D)

550(W)×730(H)×755(D)

Inside dimension (mm)

100(W)×95(H)×220(D)

225(W)×220(H)×345(D)

310(W)×280(H)×455(D)

Withstand load
[Uniformly-distributed load]

2kg

5kg

8kg

Equipment weight

28kg

49kg

66kg

Breaker capacity

AC100V 15A
1ø 50/60Hz

AC200V 20A
1ø 50/60Hz

AC200V 30A
1ø 50/60Hz

Fail-safe

Door limit switch, Over-heat Protection

Standard accessory

Plate, Supply cable(3m), Exhaust port

(*1) Temperature at the control point within the heating chamber.
(*2) Valid dimension is two-thirds inside dimension.
☆ The maximum working temperature varies depending on the optional equipment and conditions of operation.
☆ Thermocouples are consumable items.
