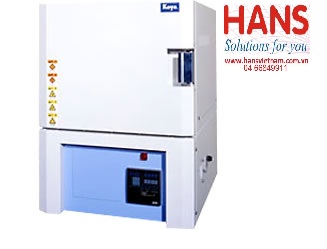

Lò nung Koyo Thermo KBF 1800°C Series

Model: KBF 1800°C Series

Hãng sản xuất: Koyo Thermo

Thông số kỹ thuật:

Type	KBF314N1-18	KBF524N1-18	KBF624N1-18
Max. operation Temperature (*1)	1800°C
Normal operation Temperature (*2)	1000~1700°C
Control System	Temperature Programmer
Heater	MoSi2 heater
Heater Power	3.6kW(at 200V)	5.2kW(at 200V)	7.6kW(at 200V)
TC	PR(40-20)
Outer dimension (mm)	510(W)×650(H)×600(D)	560(W)×690(H)×600(D)	560(W)×495(H)×700(D)
Control board (mm)	-	-	560(W)×835(H)×700(D)
Inside dimension (mm)	125(W)×123(H)×155(D)	215(W)×158(H)×255(D)	215(W)×203(H)×360(D)
Withstand load [Uniformly-distributed load]	3kg	4kg	6kg
Equipment weight	85kg	110kg	150kg
Breaker capacity	AC200V 30A 1ø 50/60Hz		AC200V 40A 1ø 50/60Hz
Fail-safe	Door limit switch, Over-heat Protection, Thermocouple disconnection
Standard accessory	Alumina Plate, Supply cable(3m)

(*1) Temperature at the control point within the heating chamber.
(*2) Valid dimension is two-thirds inside dimension.
☆ The maximum working temperature varies depending on the optional equipment and conditions of operation.
☆ Thermocouples are consumable items.
