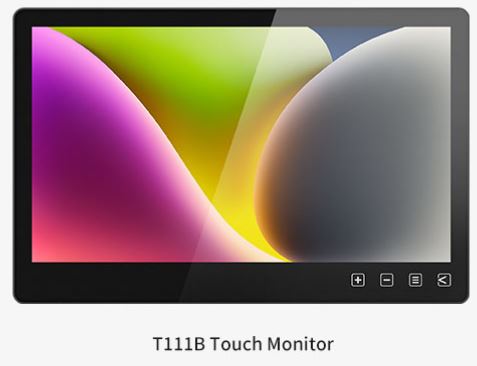

Màn hình cảm ứng Gechic T111B

Hans Việt Nam chuyên cung cấp Màn hình cảm ứng Gechic T111B

Panel

Active Area

Pixel Pitch

Resolution

Color Depth

Color Gamut

11.6" (16:9) wide screen

256.32mm*144.18mm

0.134mm (H) *0.134mm (V)

1920x1080

16.7M Colors

NTSC 72%

Brightness

Contrast

Viewing Angle

300 (cd/m²) (Typical)

1000:1(Typical)

170°(H)/170°(V)(CR>10)

Type of Touchscreen

Screen Hardness&Thickness

Screen Coating

Touch Input

Projective capacitive Touch Glass, Support 10-point touch inputs recognition

Panel surface hardness ≧ 7H, Thickness 1.1mm

Clear and A.F.(Anti-fingerprint coating)

Finger or stylus( Diameter of Touch Point ≧ 6.0mm)

Operation System

Windows 11/10/7,Linux(Kernel 3.8 onwards),Ubuntu(Kernel 2.6 onwards),Chrome OS(Kernel 3.9 onwards),Raspberry Pi OS, etc.
(If the Linux version doesn’t have touchscreen function enabled, please contact the system vendor to activate the "HID multi-touch panels" functionality.)

Support Video Modes

1920x1080P(50Hz/59.94Hz/60Hz); 1280x720P(50Hz/59.94Hz/60Hz);
720x480P(59.94Hz/60Hz); 640x480P(59.94Hz/60Hz)

Supported Resolutions

1920*1080(60Hz); 1600*900(60Hz);
1440*900(60Hz); 1366*768(60Hz)​;
1280*1024(60Hz); 1280*960(60Hz);
1280*800(60Hz);​​ 1280*768(60Hz);
1280*720(60Hz); 1024*768(60Hz)

Video Input

Supported Display Modes

Audio Output

HDMI-A(HDMI v1.4)*1、 USB Type-C(DP1.2)*1

Horizontal Frequency: 29.8KHz~67.5KHz; Vertical Frequency: 50Hz~60Hz

Earphone jack3.5mm mini jack*1 (Support Analog 3.5mm AUX)

USB Type-C(Upstream)

USB-A(Downstream)

USB Type-C*1 (DP1.2 video input)(Power Delivery：5V DC input)(USB 2.0)

USB-A(USB 2.0)*1

DC-IN

DC Jack (Pin OD 1.30Φ)(12V DC Input)*1

HDCP Support

Speakers

Yes

No

Power Consumption

7.0W

Power Consumption-Standby Mode

1.0W

Power Consumption-Off Mode

0.2W

Rating Power

12V---0.6A

Connectivity

HDMI-IN *1
USB-A *1
USB-C *1
DC IN *1
Headphone out Jack *1

VESA wall mount

Environment

VESA75 (75mm × 75mm)

Operating :0~50℃; Humidity:20~90%RH
Storage:-20~60℃; Humidity:10~90%RH

Cabinet Colors

Dimension(W×H×D)

Weight (Typical)

Front: Black / Back: Black

279.72mm×181.08mm×20.25mm

780g

Accessories in Package

HDMI-A Video Cable*1
USB-A(Dual) to USB-C Power & Touch Signal Cable*1
USB Type-C Video Cable*1
12V-2A AC-DC Power Adapter*1

Optional Accessories

USB Type-C Video Cable(2m)
USB-A(male) to USB-A(female) Extension Cable(1.5m)
HDMI-A Video Cable(2.5m)
USB-A(Dual) to USB-C Power and Touch Signal Cable(2.5m)
T1S5 Swivel Stand

Certification

Warranty

BSMI, CE, FCC, VCCI, CB, RoHS

1 year limited

Quý khách có nhu cầu về Màn hình cảm ứng Gechic T111B, xin vui lòng liên hệ Hans Việt Nam để được hỗ trợ tốt nhất.
